3" STN graphic LCD module, 128×64, MCU
- Model
- JM-L12806404
- Size
- 3"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-L12806404, built in our Shenzhen plant - 150 cd/m² brightness, -20°C to +70°C operating range, ST7567 driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-L12806404 |
|---|---|
| Screen size | 3" |
| Resolution | 128×64 |
| Display type | STN/Positive Display |
| Interface | Parallel/Serial |
| Brightness | 150 cd/m² |
| Colours | Blue/yellowish Green |
| Driver IC | ST7567 |
| Driving voltage | 3.3V |
| Backlight | LED White, Blue, Yellow, Red, Green And Amber |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 81.2mm×48.2mm×6.6mm |
| Active area | 65.5mm×38.0mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Product description
Sunlight Readable 3 Inch128×64 Monochrome LCD Display 3.3V Low Power Design LCD Panel
Custom & OEM 3-inch COG Monochrome LCD Monitor With128×64 Monochrome LCD Display 3.3V Low Power Design lcd panel
JM-L12806404 Monochrome LCD Display - Sunlight-Readable Performance
Engineered to balance clarity and functionality, the JM-L12806404 is a 128×64 monochrome LCD display designed to enable readable performance under outdoor sunlight. While versatile for various applications, its optical characteristics minimize reflection and enhance contrast, ensuring text and graphics remain legible even in bright ambient light—making it suitable for devices temporarily used in sunlit environments.
Product Key Features and Advantages
Engineered to minimize reflection and enhance contrast, ensuring clear visibility of text and graphics under direct sunlight—ideal for brief outdoor use or intermittent sunlight exposure.
128×64 dot matrix with a 10:1 dot size scale delivers detailed visual content for crisp imagery.
Operates at 3.3V DC with minimal energy consumption, suited to battery-powered devices like handheld tools or portable equipment.
Functions reliably from -20°C to 70°C (operating) and -30°C to 80°C (storage), suitable for fluctuating outdoor and industrial environments.
Compact overall size (71.20±0.2 mm) with a standard 128×64 dot configuration, ensuring easy integration with common display interfaces.

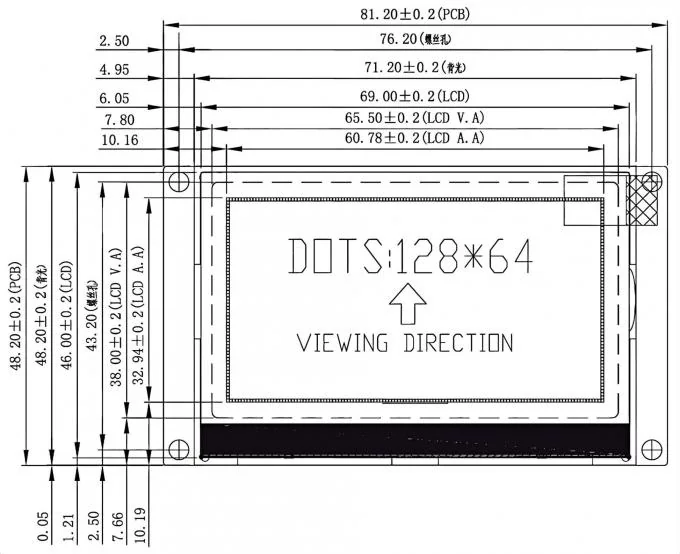

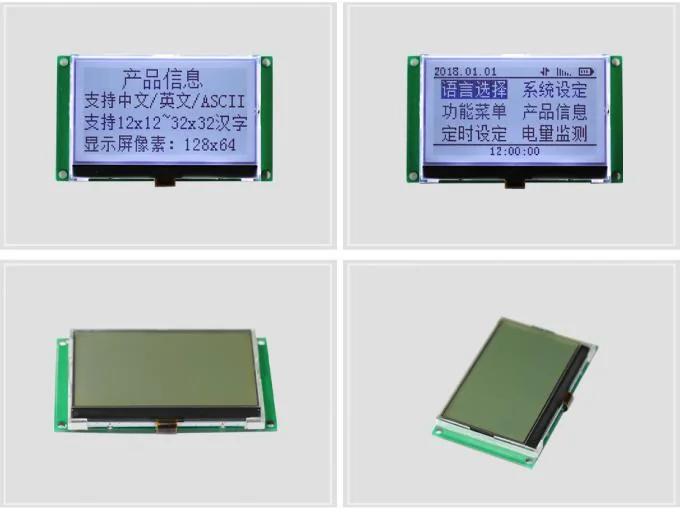

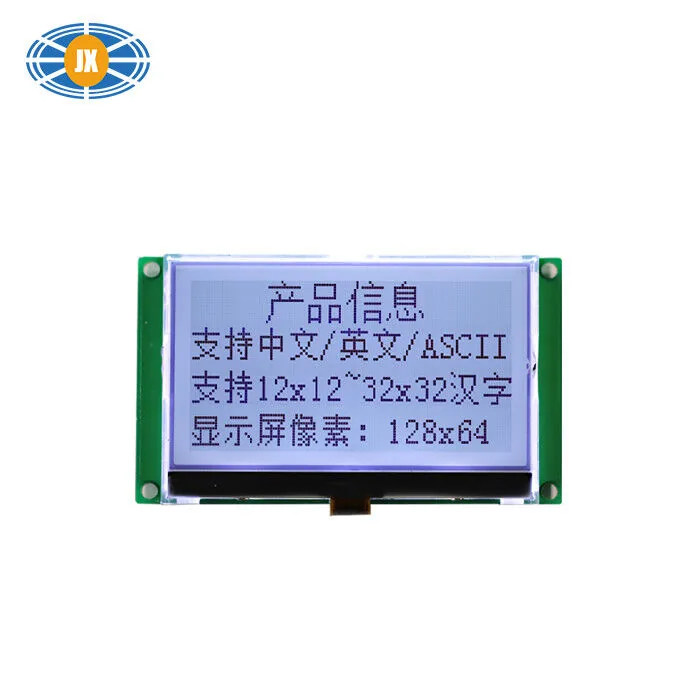

Detail photos
What this specification means in practice
TN glass is the cost-efficient choice with the fastest response. Contrast and colour shift once you move off the specified viewing direction, so it fits devices with a fixed operator position.
150 cd/m² is an indoor, low-power specification - typical for battery meters and handheld instruments where runtime matters more than brightness.
The UART/serial variant carries its own controller and command set, so your MCU sends text and commands instead of driving pixels. It cuts firmware work substantially.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Instrumentation & Metering
Power, gas and water meters that must run for years on a battery and stay readable in daylight.
Industrial Automation & HMI
Simple machine readouts where colour adds cost but no information.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
3 Inch COG Monochrome LCD Monitor , COG Dot Matrix Display With ST7567 Driver
3 Inch TFT LCD Display 500cd/m2 High Brightness LCD Monitor With Full Viewing Angle
3 Inch COG Monochrome LCD Monitor 160x160 FSTN Monochrome LCD Screen With COG
128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver
Questions about this model
What is the minimum order quantity for the JM-L12806404?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
