OLED Display Modules
10 models from 0.49" to 2.42", with MCU / 8080 / 6800 parallel, I²C and SPI interfaces. Samples 5 pcs, lead time 10-20 days. OLED modules are self-emissive, so each pixel produces its own light without a backlight. This delivers deep blacks, high contrast and excellent readability. They are available in black-and-white, black-and-blue, and two-color displays, making them suitable for compact equipment, instruments and smart devices where clear, low-power information display is required.
All models made in our own Shenzhen plant
OLED Display Modules in stock production

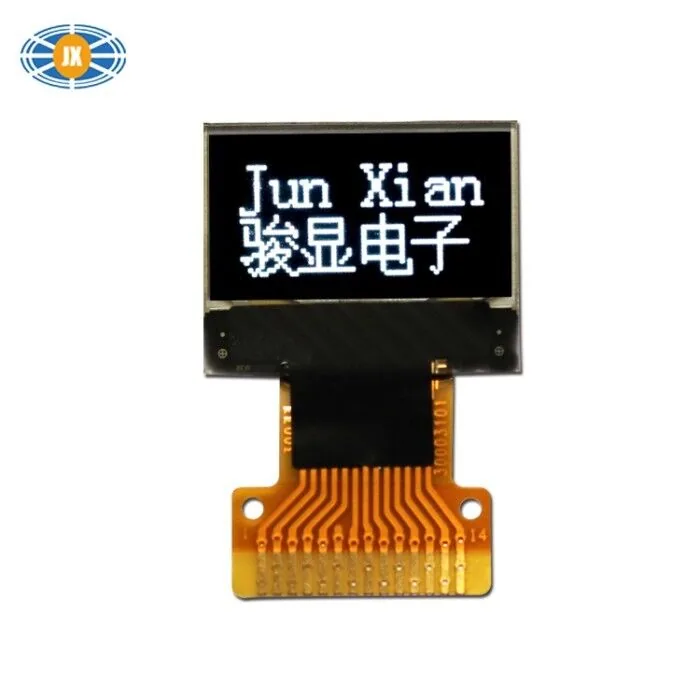

0.49 Inch Monochrome OLED Display Module , OEM Ultra Thin OLED Display
JM-PO107

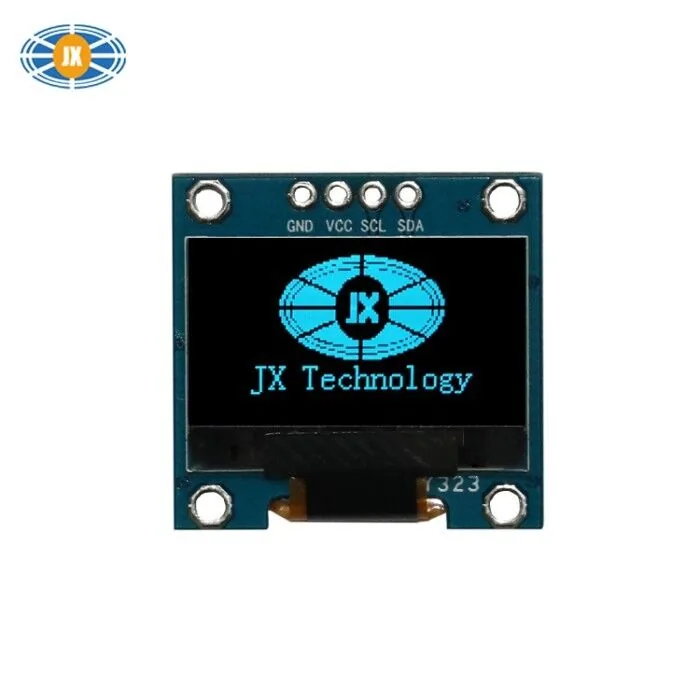

Industrial 0.96 Inch OLED Screen 128×64 Dot Matrix Display Module With SSD1315Z Drive
JM-PO136

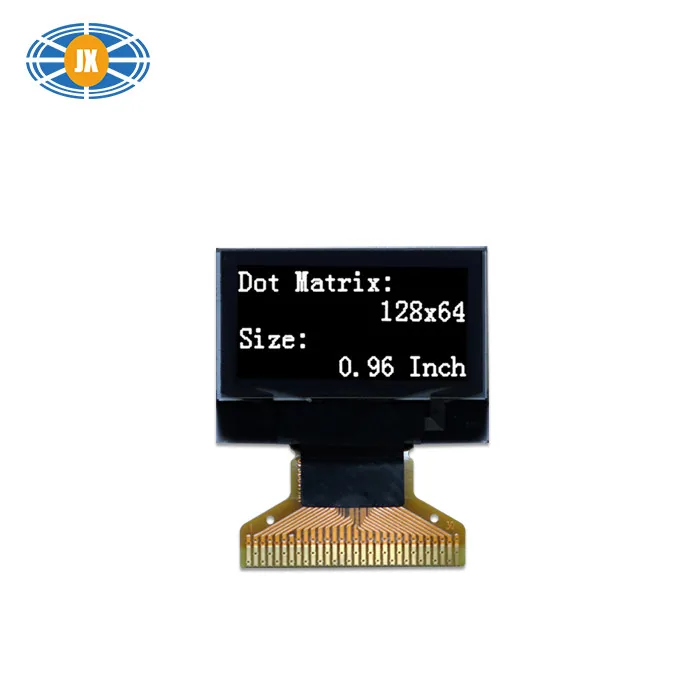

0.96 Inch OLED Display Module 128x64 White Monochrome LCD Monitor For Wearables / IoT
JM-PO122-00
1.3 Inch OLED LCD Display High Res Versatile Interface OLED Screen Module With SH1116 Driven
JMP0121

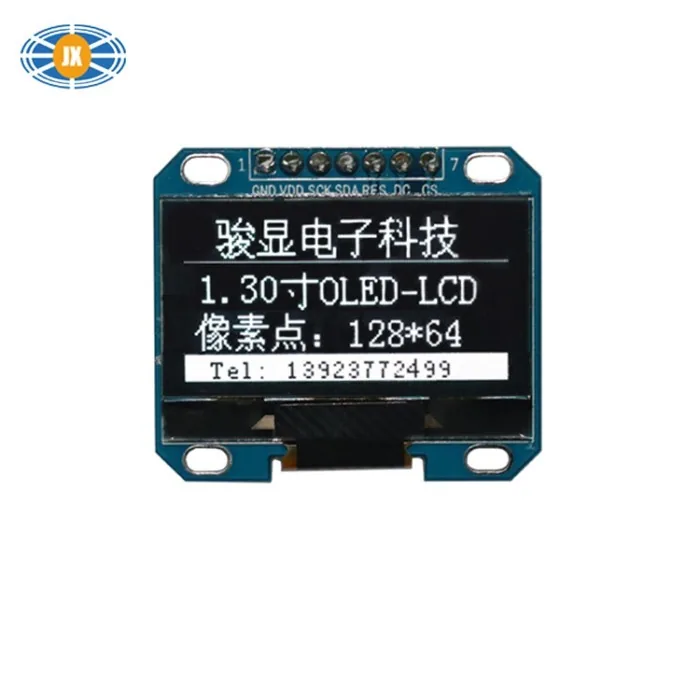

1.3 Inch OLED Display Module 128x64 160° Viewing Angle Lcd Monitor With SH1106G Driver
JM-PO139-01
1.3-Inch Monochrome OLED Screen – SSD1306 Driver & Versatile Parallel/SPI/I²C Interfaces for MCU Systems
JM-PO158-01

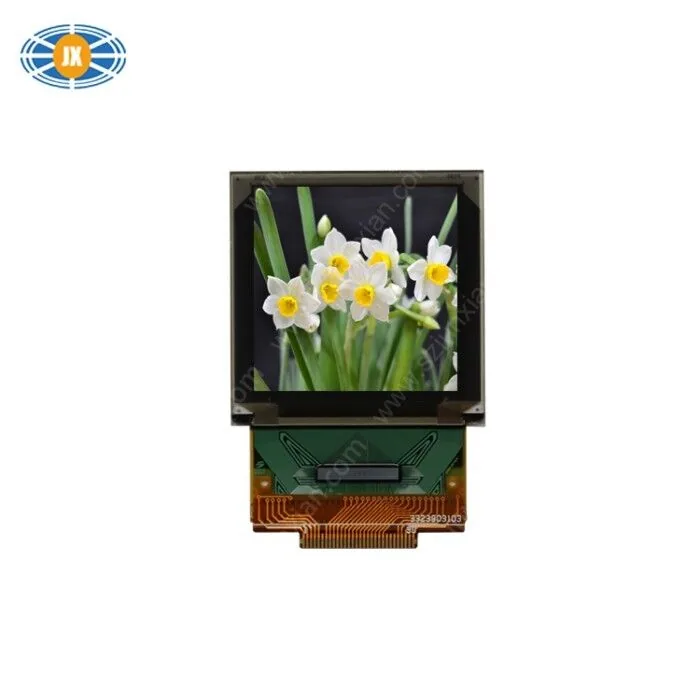

1.46 Inch Color OLED Display Module with 8 Bit Parallel LCD Interface 30 Pins 128x128 LCD Screen
JM-PO128

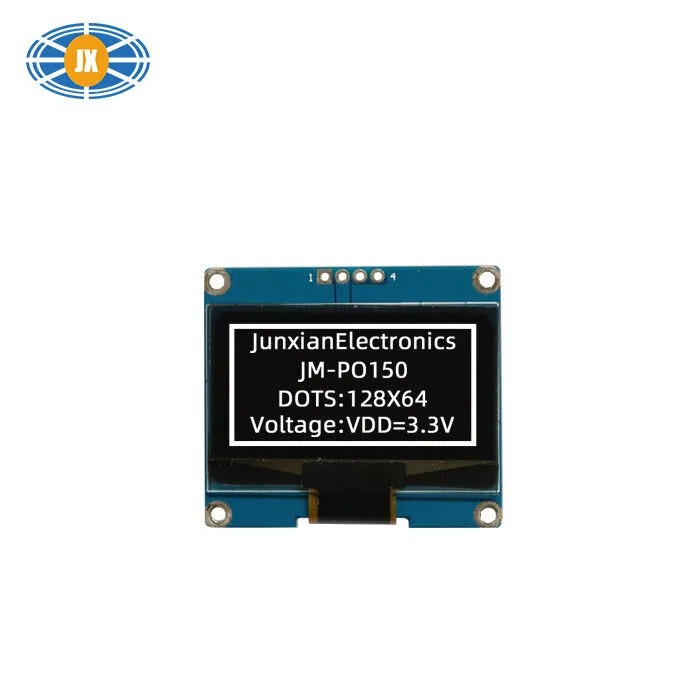

Monochrome Dot Matrix 1.54 Inch OLED Display 128x64 Pixels I2C Interface LCD Display
JM-PO150

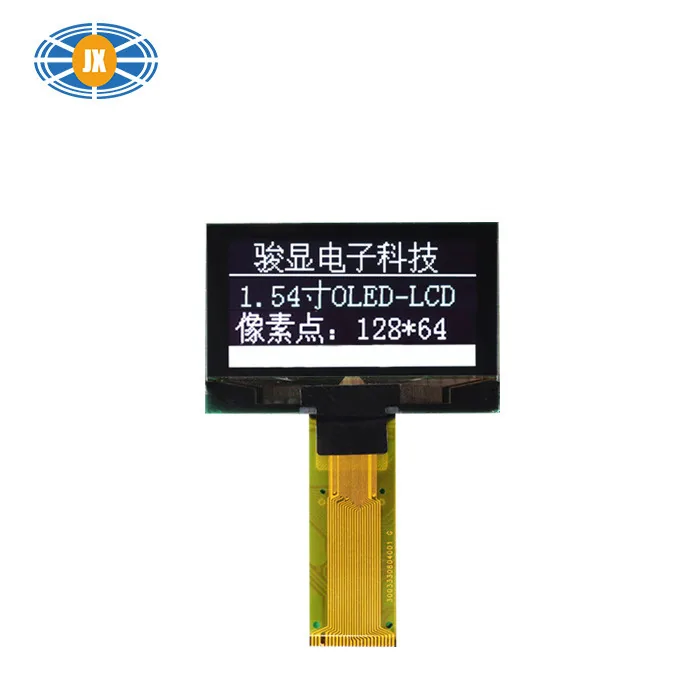

Compact 1.54 Inch OLED Display Module Power Efficiency LCD Monitor With 128×64 Dot
JM-PO139-01

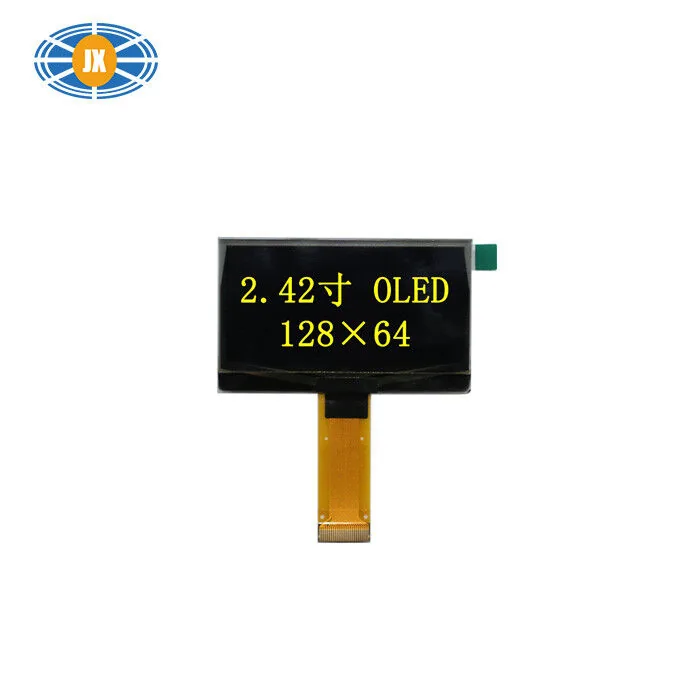

2.42 Inch OLED Display Module Monochrome OLED DOT Matrix Display With All Viewing Angle
JM-P0159-00Model comparison
All values are typical. Click a model number for the full specification.
| Model | Size | Resolution | Type | Interface | Brightness | Touch | Operating temp |
|---|---|---|---|---|---|---|---|
| JM-PO107 | 0.49" | 64×32 | Positive Display | Parallel/Serial | - | -40°C to +70°C | |
| JM-PO136 | 0.96" | 128×64 | Positive Display | IIC | - | -40°C to +70°C | |
| JM-PO122-00 | 0.96" | 128×64 | outstanding | 6800/8080 Interface, I2C | - | -40°C to +70°C | |
| JMP0121 | 1.3" | 128×64 | outstanding | 6800/8080 INTERFACE | 120 cd/m² | selectable | -40°C to +70°C |
| JM-PO139-01 | 1.3" | 128×64 | Passive Matrix | 4-wire Serial Interface | - | -40°C to +70°C | |
| JM-PO158-01 | 1.3" | 128×64 | Positive Display | 8-bit 68XX/80XX Parallel, 3/4-wire SPI | - | -40°C to +70°C | |
| JM-PO128 | 1.46" | 128×128 | outstanding | 8-bit For Parallel | - | -40°C to +70°C | |
| JM-PO150 | 1.54" | 128×64 | negative display | I 2C | - | -40°C to +70°C | |
| JM-PO139-01 | 1.54" | 128×64 | 6800/8080 Parallel, 4-wire SPI | - | -40°C to +85°C | ||
| JM-P0159-00 | 2.42" | 128×64 | outstanding | 6800/8080 INTERFACE | 120 cd/m² | Without Touch Screen (Customizable) | -40°C to +70°C |
How to choose
Size limit
OLED makes sense below roughly 2.5". Above that a TFT is usually cheaper and brighter for the same money.
Static content
Avoid a fixed logo displayed permanently at full brightness; vary the layout or dim it to extend lifetime.
Interface
I2C for two-wire status displays, SPI when refresh rate matters, parallel for colour OLED.
Still unsure? The technical guides go through these decisions with numbers, or send us the application and we will shortlist two or three models.
OLED Display Modules - common questions
What is the MOQ for oled display modules?
Samples 5 pcs, standard production 100 pcs, fully custom 1,000 pcs.
Can I get a datasheet before ordering?
Yes, on request. Email hyd@szjunxian.com with the model number, or list your parameters and we will propose models that fit.
Do you supply the panel only, or a complete assembly?
Both, by default a bare module. We also bond touch panels and cover glass, fit custom FPCs and connectors, and supply a driver board where the design needs one.
What if none of the listed models fits?
About 120 new models a year start exactly this way: we modify a close model or build to your drawing. Send the size, resolution and interface you need.
Are you a manufacturer of oled display modules, or a trading company?
A manufacturer. Every model on this page is built on our own line in Bao'an, Shenzhen - we are a oled display module supplier in China with our own plant, 3 assembly lines and 52 staff, not an agent reselling another factory's panels. The business licence and ISO 9001 certificate with its registration number are published on our certifications page, and you are welcome to see the plant on video before you order.
Need a quote or a datasheet?
Send us size, resolution, interface and annual quantity. Our engineers reply within one working day. Sample MOQ 5 pcs, lead time 10-20 days.
