10.1" IPS TFT touch display module, 1024×600, RGB
- Model
- JM-PT074
- Size
- 10.1"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT074, built in our Shenzhen plant - 400 cd/m² brightness, -20°C to +70°C operating range. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT074 |
|---|---|
| Screen size | 10.1" |
| Resolution | 1024×600 |
| Display type | IPS |
| Interface | RGB |
| Brightness | 400 cd/m² |
| Contrast ratio | 600:1 |
| Touch panel | With CTP Cover Glass Dimension: Customizable |
| Driving voltage | 5.0V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 235.00mmx143.00mmx6.6mm |
| Active area | 222.72X125.28mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Custom & OEM 5V 10.1 Inch HD Touch Screen Display Module With 1024×600 Pixels From professional LCD Manufacturer
1. Product Features and Advantages
Key Features & Advantages
(1) Stunning Visuals: Boasts a 10.1" Industrial IPS TFT LCD with a 1024×600 resolution, delivering sharp images and vivid colors. The 400 cd/m² brightness ensures excellent visibility even in challenging lighting conditions, while 85° wide viewing angles (all directions) allow clear viewing from various perspectives.
(2) Durable & Long-lasting: Features an impressive 40,000-hour LED lifespan (L70 Standard @25°C), reducing the need for frequent replacements and minimizing maintenance costs over time.
(3) Sensitive Touch Experience: Equipped with PCAP (Projected Capacitive) touch technology, which is G+G laminated for enhanced durability and accuracy. This provides a smooth, responsive touch interface that is ideal for industrial applications.
(4)Compliance & Safety: Fully compliant with REACH and RoHS regulations, ensuring the product meets strict environmental and safety standards. It’s a responsible choice for both your business and the planet.
(5) Reliable in Extreme Conditions: Designed to operate in a wide temperature range from -20°C to +70°C, making it suitable for use in harsh industrial environments, outdoor applications, and other demanding settings.
(6)Convenient Interface: Comes with a 50-pin RGB Plug-in interface, enabling easy integration with various systems and devices, streamlining installation and operation processes.
(7)Customizable Design: Offers the option of a custom cover glass, allowing you to tailor the display to your specific application requirements for a good fit and enhanced performance.

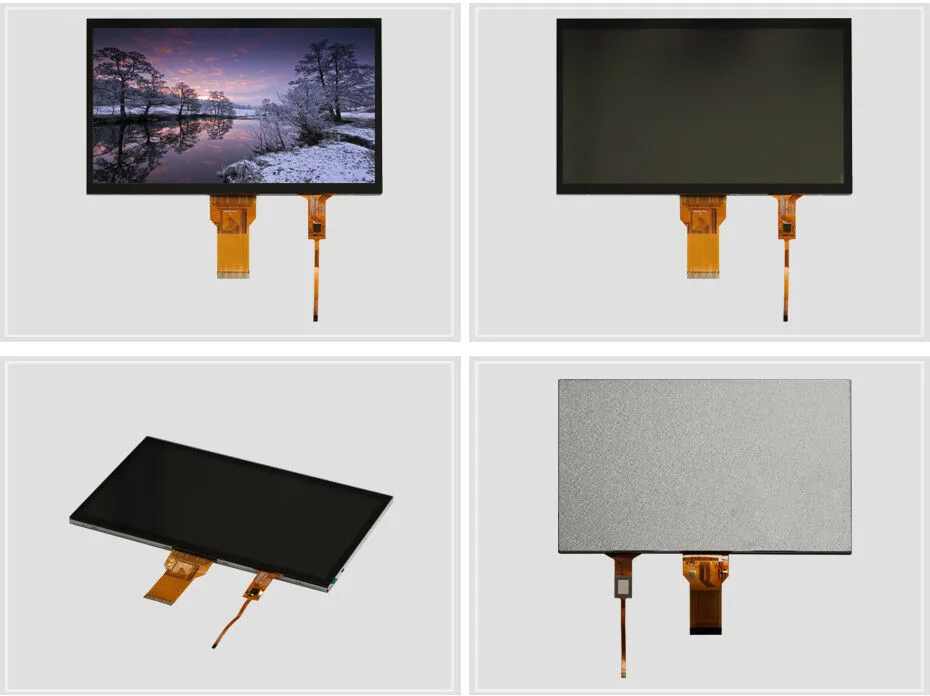

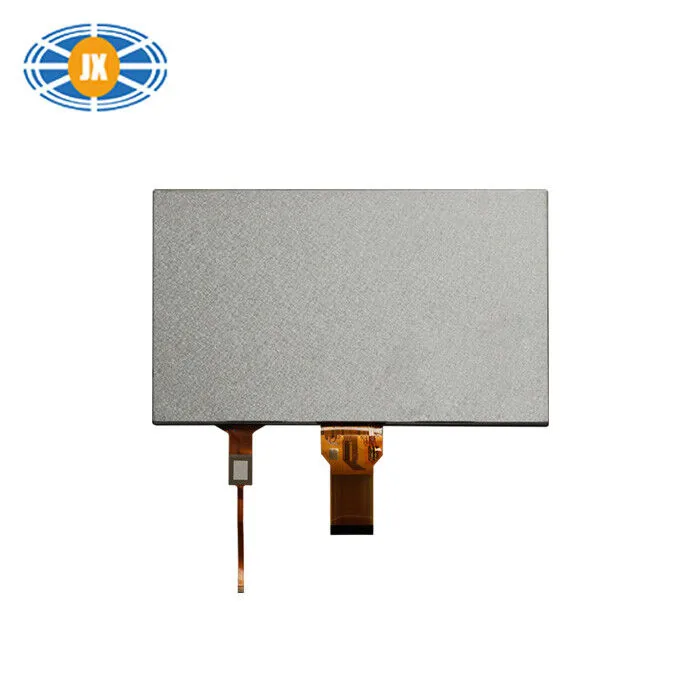

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
400 cd/m² is the bracket most industrial enclosures need: readable under workshop lighting and near a window, without the power draw of a sunlight-readable backlight.
The parallel RGB interface needs a host with an LCD controller and around 20-28 I/O lines. It gives full frame-rate colour without a frame buffer IC, which is why it is standard on industrial ARM boards.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
The capacitive touch panel is bonded in-house. Tell us whether the device is used with gloves or in wet conditions - it changes the sensor stack and the controller tuning, and it is far cheaper to decide before tooling than after.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Operator panels replacing membrane keypads - fewer mechanical parts to fail, and the UI can change in firmware.
Smart Home & Appliances
Wall panels and appliance fronts where the touch sensor is bonded behind decorated cover glass.
Energy Storage, BMS & EV Charging
Charging stations and inverter panels used outdoors with gloves on.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
10.1 Inch IPS Touch Screen LCD Display 3.3V HD Color LCD Panel 500cd/M2 TFT LCD Display
10.1 inch Color TFT LCD Display MIPI Interface High Luminance LCD Monitor 800×1280 Pixels
10.1 Inch TFT Display Capacitive Touch, 800×1280, Full View, MIPI Interface
9 Inch TFT Display 1024x600 Touch Screen LCD Monitor For Industrial / Automotive
Questions about this model
What is the minimum order quantity for the JM-PT074?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
