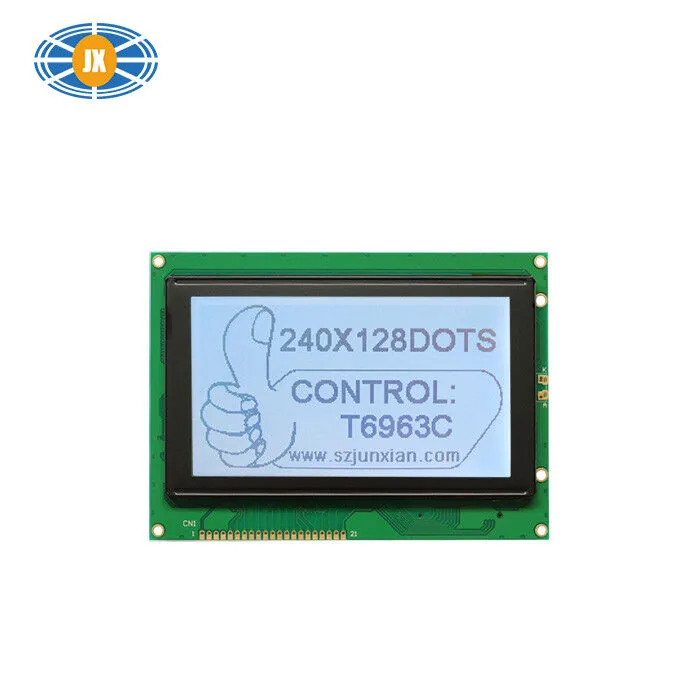

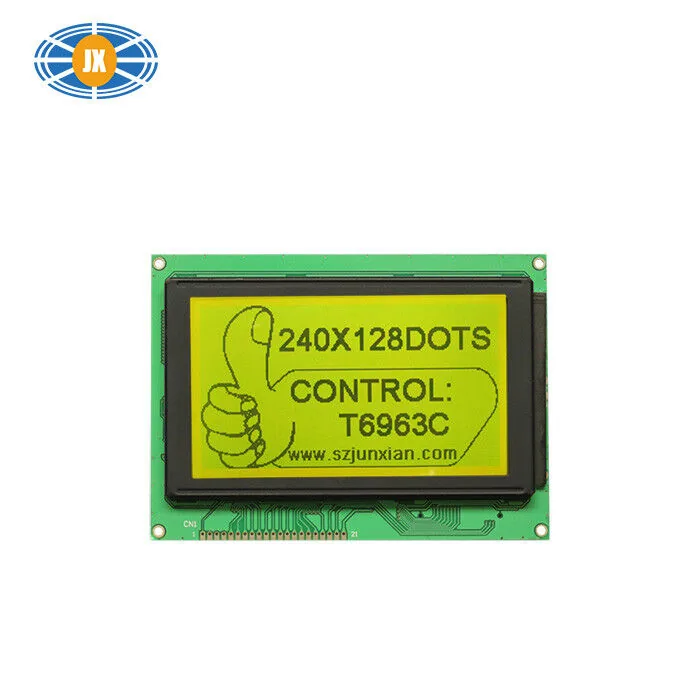

5.2" STN graphic LCD module, 240×128
- Model
- JM240128C
- Size
- 5.2"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM240128C, built in our Shenzhen plant - 200 cd/m² brightness, -20°C to +70°C operating range, T6963C driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM240128C |
|---|---|
| Screen size | 5.2" |
| Resolution | 240×128 |
| Display type | STN/blue |
| Interface | Emulator |
| Brightness | 200 cd/m² |
| Contrast ratio | Offers a contrast ratio ranging from 1 - 100%, allowing for adjustable visual clarity. |
| Colours | Blue |
| Touch panel | Without Touch Screen (Customizable) |
| Driver IC | T6963C |
| Driving voltage | 5.0V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 144mmx104mmx13.7mm |
| Active area | 114.0mmx64.0mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Product description
Custom 5V High Resolution Graphic Blue LCD Display 5.2 Inch Wide Viewing Angle LCD Emulator factory
1. Product Features and Advantages
1.1 Display Specifications
Resolution: Boasts a resolution of 240×128 pixels, ensuring clear and sharp visual output.
LCD Size: With a 5.2 - inch monochrome screen, the physical dimensions of the LCD are 144.0mmx104.0mmx13.7mm, and the visual area measures 114.0x64.0mm.

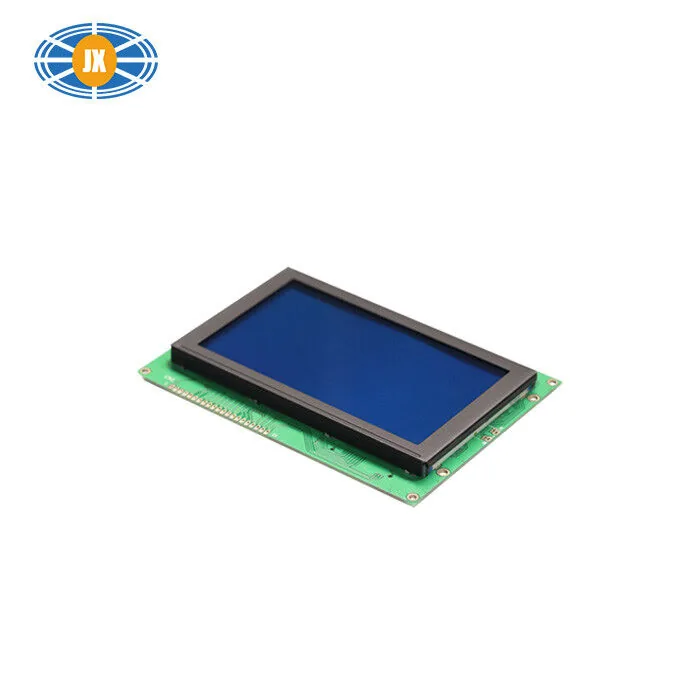

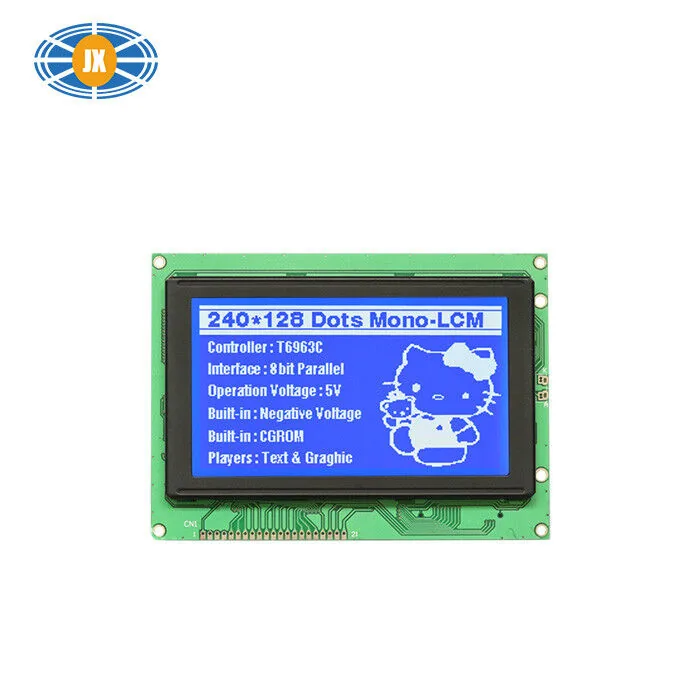

LCD Display Type: Utilizes STN/blue display technology, presenting a distinct blue - toned monochrome display.
Contrast Ratio: Offers a contrast ratio ranging from 1 - 100%, allowing for adjustable visual clarity.
Surface Luminance: Has a surface luminance of 200cd/m², providing sufficient brightness for various viewing environments.
1.2 Functionality
Character Generation: Equipped with a built in 256 WORD ROM character generator, enabling the display of basic English characters, numeric symbols, and other letters.
Display Modes: Supports text display mode, graphic display mode, and a mixed display mode of the two, offering versatility in content presentation.
Memory Expansion: Allows for an external display memory (DISPLAY RAM) of up to 64KBYTE. Also, the display window can be easily moved within the display memory range.
Special Display Features: Supports bold text display, cursor movement, and full - screen inversion, enhancing user - experience and functionality.
1.3 Compatibility
MCU Interface: Compatible with the 8080 series of MCUs, making it convenient for integration into a wide range of systems.
1.4. Operational Environment
Operating Temperature: Can operate stably in a temperature range of - 20°C to + 70°C.
Storage Temperature: Can be stored in a temperature range of - 30°C to + 80°C, ensuring durability in various environmental conditions.
1.5 Backlight and Lifespan
Backlight: Features LED white light backlight, providing uniform illumination.
LED Lifespan: The LED has a lifespan of two years, ensuring long - term reliable use.
1.6 High quality
Guaranteeing quality and compliance with RoHS and REACH requirements.
What this specification means in practice
TN glass is the cost-efficient choice with the fastest response. Contrast and colour shift once you move off the specified viewing direction, so it fits devices with a fixed operator position.
200 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Instrumentation & Metering
Power, gas and water meters that must run for years on a battery and stay readable in daylight.
Industrial Automation & HMI
Simple machine readouts where colour adds cost but no information.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
2.9 Inch COG Monochrome LCD Display 240x128 FSTN Dual Interface COG Dot Matrix Display
Industrial 240x128 Graphic LCD Module Blue Monochrome LCD Panel With STN FTTN Display
5.0 Inch Monochrome LCD Screen 240×128 STN Monochrome LCD Panel
OEM ODM Custom LCD Monitor , Multiple TFT LCD Module With Turnkey Solutions
Questions about this model
What is the minimum order quantity for the JM240128C?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
