4.3" IPS TFT touch display module, 480×272, RGB (JM-PT105-01)
- Model
- JM-PT105-01
- Size
- 4.3"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT105-01, built in our Shenzhen plant, -20°C to +70°C operating range, NV3047EGHK-H2 driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT105-01 |
|---|---|
| Screen size | 4.3" |
| Resolution | 480×272 |
| Display type | IPS |
| Interface | RGB 8BIT |
| Colours | 262K |
| Touch panel | Selectable |
| Driver IC | NV3047EGHK-H2 |
| Driving voltage | 2.8V~3.3V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 105.42mm×67.07mm×5.0mm |
| Active area | 95.04X53.86mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description

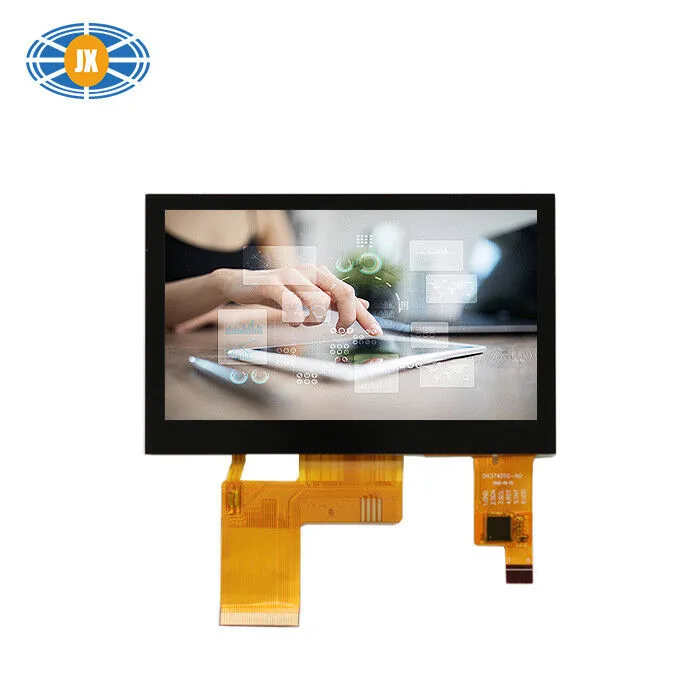

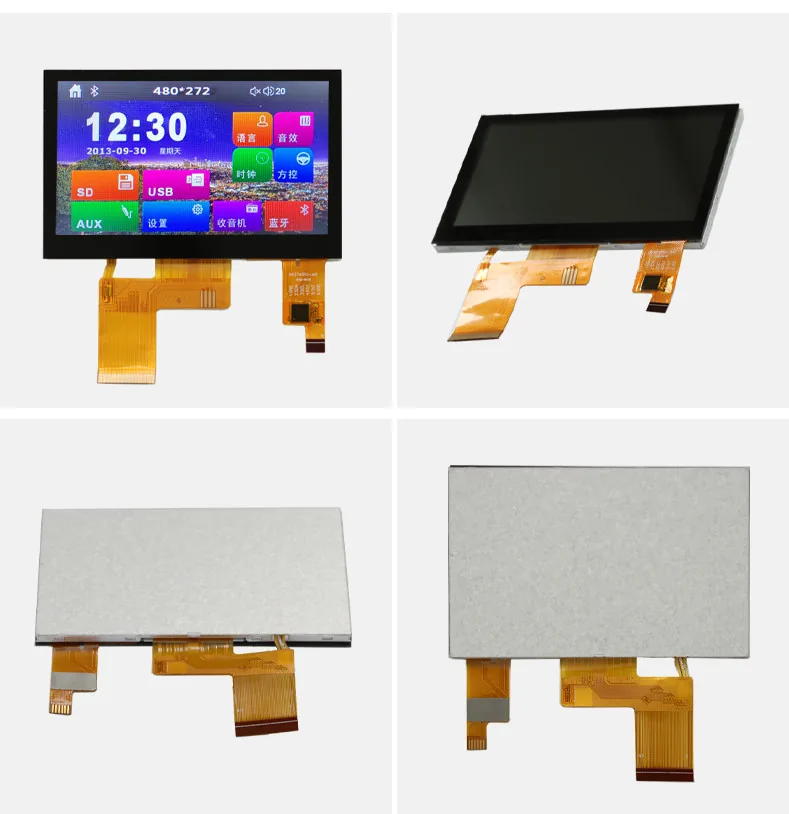

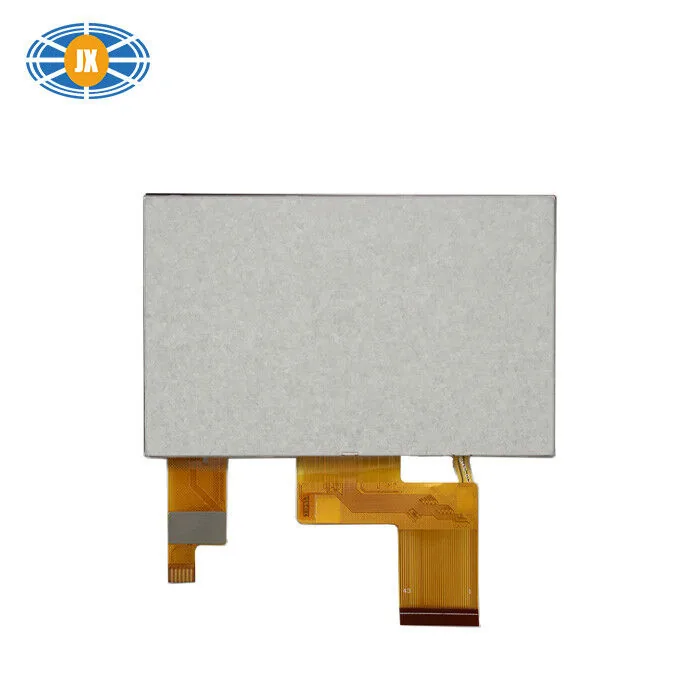

Customized 4.3-inch Capacitive Touch Screen TFT LCD Display 8 Bit RGB Interface And Full Viewing Angle LCD Monitor
This high-performance LCD module combines a full-viewing angle TFT display with a responsive capacitive touch screen, ideal for applications requiring clear visibility and intuitive interaction. Engineered for outdoor readability, its robust design ensures consistent performance even under sunlight, while the 480RGB×272 WVGA resolution delivers crisp visual clarity.
Product Features and Advantages
The 4.3 - inch LCD assembly features a 480RGB×272 WVGA resolution, delivering crisp and clear visuals. With a high contrast ratio of 2000:1 (Typ.), it presents vivid colors and sharp details. The full - viewing angle of 80° in all directions (L/R/U/D) ensures consistent visibility from any position.
Integrated with a capacitive touch screen, it offers highly responsive user interaction, making it easy and intuitive to operate, suited to applications that require user engagement.
Engineered for outdoor use, its sunlight - readable design allows for clear viewing even under direct sunlight. The robust build combined with a wide operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C ensures reliable performance in various environmental conditions.
With a slim 5mm profile, it enables compact integration into different devices. The RGB 8 - bit digital interface allows for direct video input, simplifying the connection process.It guarantees both environmental friendliness and high - quality standards.
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
The parallel RGB interface needs a host with an LCD controller and around 20-28 I/O lines. It gives full frame-rate colour without a frame buffer IC, which is why it is standard on industrial ARM boards.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Operator panels replacing membrane keypads - fewer mechanical parts to fail, and the UI can change in firmware.
Smart Home & Appliances
Wall panels and appliance fronts where the touch sensor is bonded behind decorated cover glass.
Energy Storage, BMS & EV Charging
Charging stations and inverter panels used outdoors with gloves on.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
4.3 Inch TFT LCD Display 480x272 4.3 TFT LCD Color Monitor With 16M Colors Full 85° Viewing Angle
4.3 Inch LCD Touch Screen 800×480 WVGA LCD Display 260cd/M2 With 24 Bit RGB Interface
4.3 Inch IPS LCD Display Touch Screen TFT Color LCD Panel With 480×272 Pixels OEM
4.3 Inch BMS Serial Port Capacitive LCD Touch Screen 5V Full View Clear LCD Display
Questions about this model
What is the minimum order quantity for the JM-PT105-01?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
