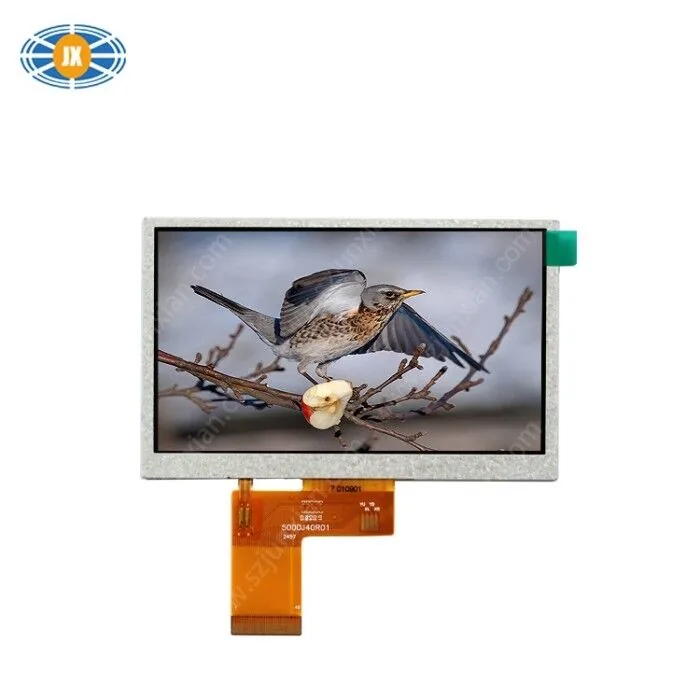

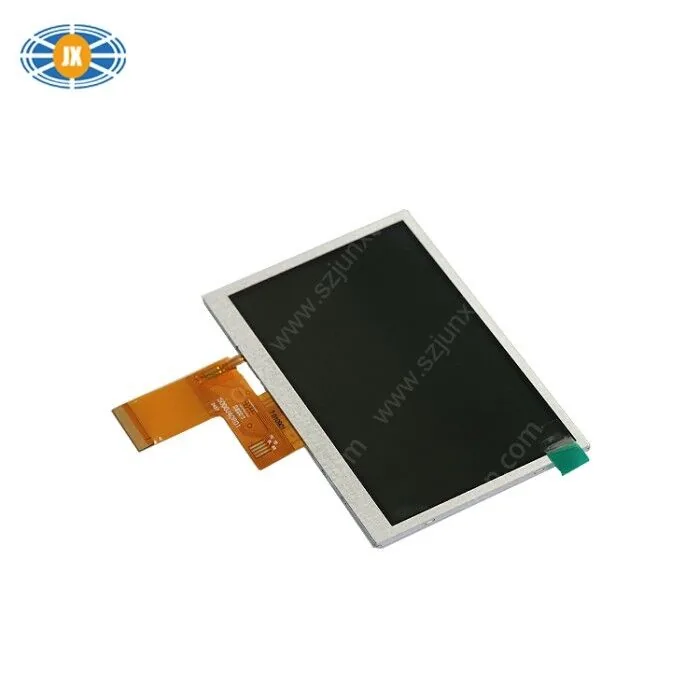

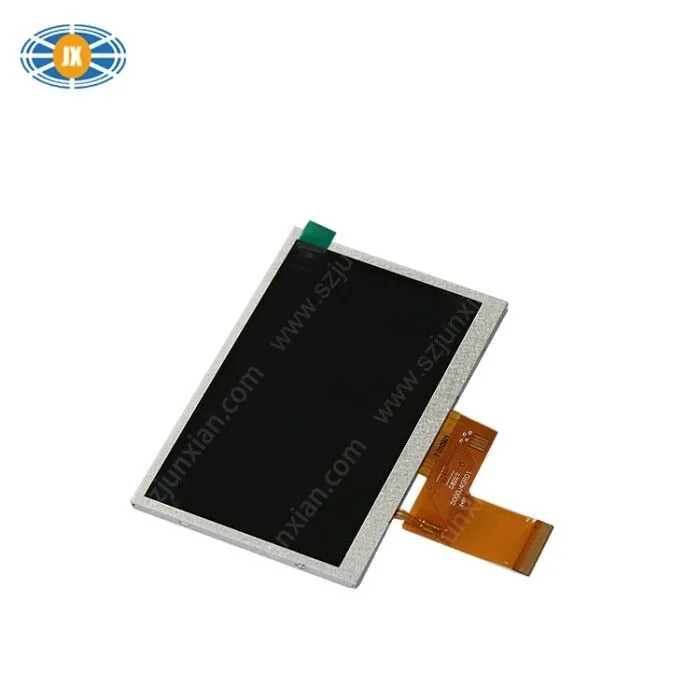

5" IPS TFT touch display module, 480×272, RGB/MCU
- Model
- JMT050WQ3TNN-01
- Size
- 5"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JMT050WQ3TNN-01, built in our Shenzhen plant - 500 cd/m² brightness, -20°C to +70°C operating range, ST7257 driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JMT050WQ3TNN-01 |
|---|---|
| Screen size | 5" |
| Resolution | 480×272 |
| Display type | IPS, Normally Black, Transmissive |
| Interface | Parallel RGB 24-Bit |
| Brightness | 500 cd/m² |
| Colours | 262K |
| Touch panel | Customizable Touch |
| Driver IC | ST7257 |
| Driving voltage | 3.3V |
| Backlight | 12chips White LEDS, 6*2 Serial |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 120.70mmx75.80mmx3.0mm |
| Active area | 110.88X62.83mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Custom High-Brightness 5.0-inch LCD Monitor With 500 Cd/m² Reliable & Durable Design LCD Display
1. Key Features & Advantages
(1) High-Brightness Outdoor Visibility:
500 cd/m² brightness (at 40mA) ensures clear readability under direct sunlight, with customizable higher brightness options for extreme outdoor environments.
(2) Vivid Visual Performance:
TFT transmissive display with 480×272 resolution and 24-bit parallel RGB interface delivers vibrant colors and seamless integration with standard display systems.
(3) Reliable & Durable Design:
Wide operational temperature range (-20°C to 70°C) and storage tolerance (-30°C to 80°C) make it suitable for harsh environments. Features a minimum MTBF of 40,000 hours for long-term reliability.
(4) Flexible Touch Integration:
Supports optional resistive touch panel with dedicated X/Y input pins, enabling interactive user interfaces for diverse applications.
(5)Precision Viewing Orientation:
Fixed 6 o’clock (bottom-view) direction optimizes visibility for specific installation setups, ensuring consistent viewing angles in targeted configurations.

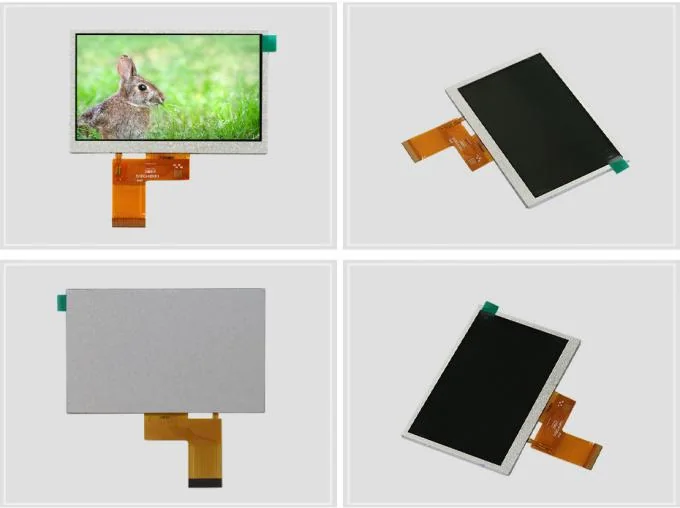

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
At 500 cd/m² this is one of our sunlight-readable panels. It stays legible on outdoor equipment, charging piles and vehicle-mounted terminals, at the cost of a higher backlight current - budget for it in battery-powered designs.
The parallel RGB interface needs a host with an LCD controller and around 20-28 I/O lines. It gives full frame-rate colour without a frame buffer IC, which is why it is standard on industrial ARM boards.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Operator panels replacing membrane keypads - fewer mechanical parts to fail, and the UI can change in firmware.
Smart Home & Appliances
Wall panels and appliance fronts where the touch sensor is bonded behind decorated cover glass.
Energy Storage, BMS & EV Charging
Charging stations and inverter panels used outdoors with gloves on.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
300cd/m2 5 Inch TFT LCD Monitor , IPS LCD Display Module 480x854 Pixels
5 Inch IPS Display Full View TFT LCD Module 500cd/M2 Sunlight Readable Brightness
Touchscreen LCD Monitor 5 Inch TFT Color LCD Display 800×480 Resolution
5 Inch Industrial TFT LCD Module - Wide Temp Resistant (70°C/-20°C Tested) with RGB Data Bus
Questions about this model
What is the minimum order quantity for the JMT050WQ3TNN-01?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
