VATN Display 100cd/m2-500cd/m2 Custom LCD Segment Display
- Model
- segment code display (customizable)
- Size
- Custom - made to your drawing
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model segment code display (customizable), built in our Shenzhen plant - 500 cd/m² brightness. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | segment code display (customizable) |
|---|---|
| Resolution | Depends On Model Or Customizable |
| Display type | VA Black Film |
| Interface | Customizable |
| Brightness | 500 cd/m² |
| Colours | White / Green / Yellow-green / Red / Blue For Optional |
| Touch panel | Without Touch Screen (Customizable) |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | Depends On Model Or Customizable |
| Active area | Depends On Model Or Customizable |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Product description
Customized VATN Display LCD Segment Code Display With Super High Contrast Ratio: Up To 120:1
Custom High Backlight Brightness Segment Code Display Multiple Segmented Screen With Negative Mode
What is a segmented liquid crystal display?
A segmented liquid - crystal display (LCD segment - code liquid - crystal screen) refers to a liquid - crystal screen whose display content is divided into multiple independent segments. Each segment can be individually controlled to be displayed or not. Its display content is immovable and the content of a single segment is fixed, which differentiates it from dot - matrix liquid - crystals. It can be used to display numbers, text, and patterns. The types of polarizers include fully - transparent type, semi - transparent type, and reflective type.
product description:
Customized VATN Display LCD
VATN (Vertical Align Twisted Nematic) is a display technology distinct from traditional TN LCD in its twist orientation, eliminating the need for crossed polarizers. VATN enables a true black-and-white operation mode with ultra-fast response speed, making it ideal for dynamic image display and large-screen applications.
Key Advantages Driving VATN LCD Integration into New Products:
- Highly Competitive Unit Pricing
- Significantly Reduced Tooling Costs
- Ultra-Low Power Consumption
- Excellent Sunlight Readability
- Wide-Range Operating Temperature Capability
VATN Display LCD / Alphanumeric LCD Display Overview:
VATN displays are characterized by high contrast, wide viewing angles, and high brightness, suited for applications such as security control systems, white goods, audio equipment, medical devices, POS terminals, and dashboard interfaces.
- Super high contrast ratio: Up to 120:1
- Wide viewing angle: Approximately 170°(H) / 110°(V)
- Operation mode: Negative mode only
- Backlight options: White / green / yellow-green / red / blue
- High backlight brightness
- Customizable four-color silk ink design available
- Certified Quality:And compliant with REACH and RoHS regulations, it ensures high - quality manufacturing and environmental friendliness.

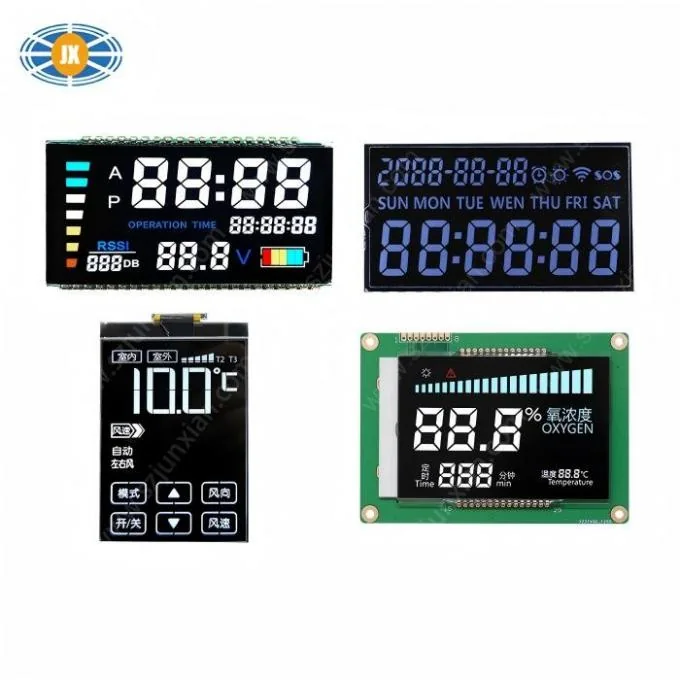

Detail photos
What this specification means in practice
VA glass gives the deepest blacks and the highest contrast of the three modes, at the cost of a narrower comfortable viewing cone than IPS.
At 500 cd/m² this is one of our sunlight-readable panels. It stays legible on outdoor equipment, charging piles and vehicle-mounted terminals, at the cost of a higher backlight current - budget for it in battery-powered designs.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Instrumentation & Metering
Meters and gauges showing a fixed set of digits and icons at the lowest possible power.
Smart Home & Appliances
Appliance panels where the custom icon layout is the product design.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
Custom Segment LCD Display with Incell capacitive touchscreen for industrial controls
TN, STN & VA Segment LCD Display Custom Manufacturer
Custom 2.4 Inch TFT LCD Display 240×320 MCU Interface 350cd/m2 High Brightness TFT Display
1.14 Inch IPS TFT LCD Display Manufacturer 135x240 Pixels 8 Bit MCU Llcd Interface
Questions about this model
What is the minimum order quantity for the segment code display (customizable)?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
