1.3" OLED display module, 128×64, MCU/SPI
- Model
- JM-PO158-01
- Size
- 1.3"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PO158-01, built in our Shenzhen plant, -40°C to +70°C operating range, SSD1306 driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PO158-01 |
|---|---|
| Screen size | 1.3" |
| Resolution | 128×64 |
| Display type | Positive Display |
| Interface | 8-bit 68XX/80XX Parallel, 3/4-wire SPI |
| Contrast ratio | 2000 : 1 (Dark Room Contrast ) |
| Colours | Black White Blue Yellow Green Fonts |
| Driver IC | SSD1306 |
| Backlight | LED white light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 34.5×23×1.45mm |
| Active area | 34.5x19.2mm |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
1.3-Inch Monochrome OLED Screen – SSD1306 Driver & Versatile Parallel/SPI/I²C Interfaces for MCU Systems
Product Overview
The JM-PO158-01 is a folding-type monochrome OLED display module adopting COG (Chip-on-Glass) packaging. Specifically designed for space-constrained compact electronic devices, it features a 1.3-inch active display area and 128×64 pixel resolution, delivering clear white monochrome visuals.
Product Features and Advantages
Display Type: Monochrome OLED
Active Area (A/A) Dimensions: 29.42±0.2mm (width) × 14.7±0.2mm (height), calculated based on pixel pitch (P0.23×128-0.02=29.42mm; P0.23×64-0.02=14.7mm)
Pixel Resolution: 128 × 64 Pixels
Display Color: White
(2) Driver & ControlDriver IC Model: SSD1306
General Tolerance: ±0.30mm (standard for dimensional precision control)
(3) Interface & Hardware CompatibilitySupported Interface Types: 8-bit 68XX/80XX Parallel Interface, 3/4-wire SPI Interface, I²C Interface – compatible with communication requirements of various microcontroller (MCU) systems
(4) Dimensional Specifications
Panel Size: 34.5±0.2mm (including protective structure), 23±0.2mm (specific specification)
Polarizer Size: 33.5±0.2mm, 18.2±0.2mm (corresponding to different panel specifications)
Protective Tape Thickness: Maximum 0.15mm, providing physical protection while maintaining an ultra-thin structure
(5) Structural DetailsGlue Specification: 15×8×0.05mm, ensuring firm bonding of all module components
Contact Side Width: W=0.30±0.03mm, guaranteeing reliable electrical connection

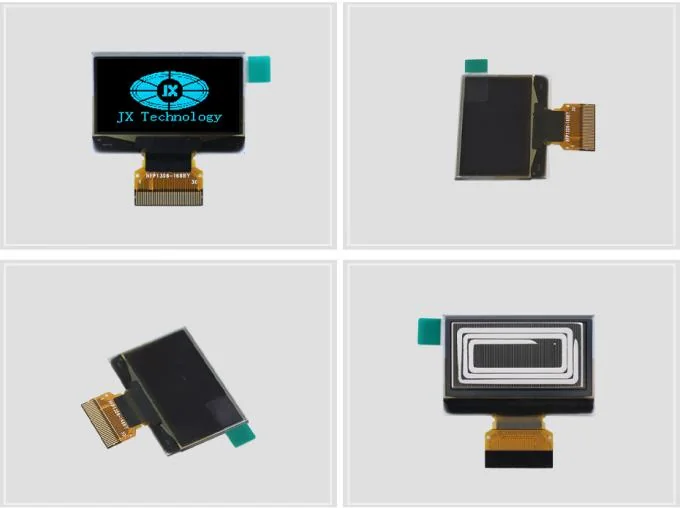

Detail photos
What this specification means in practice
SPI keeps the wiring to four or five lines, which is why it dominates small colour displays on 32-bit MCUs. The trade-off is refresh rate on larger resolutions.
Operating range -40°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Handheld Terminals & POS
Battery-powered handhelds - an OLED lights only the pixels it needs, so a mostly dark screen draws very little.
Instrumentation & Metering
Small readouts needing wide viewing angle and high contrast in a few square centimetres.
Smart Home & Appliances
Smart locks, chargers and small appliances where the display is a status window, not a UI.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
1.3 Inch OLED LCD Display High Res Versatile Interface OLED Screen Module With SH1116 Driven
High Resolution TFT Display 240x240 1.3 Inch LCD Display 300cd/m2
1.3 Inch OLED Display Module 128x64 160° Viewing Angle Lcd Monitor With SH1106G Driver
3 Inch Graphic LCD Display 3.3V Sunlight Readable LCD Display 128x64
Questions about this model
What is the minimum order quantity for the JM-PO158-01?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
