1.46" OLED display module, 128×128, MCU
- Model
- JM-PO128
- Size
- 1.46"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PO128, built in our Shenzhen plant, -40°C to +70°C operating range, SSD1351 driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PO128 |
|---|---|
| Screen size | 1.46" |
| Resolution | 128×128 |
| Display type | outstanding |
| Interface | 8-bit For Parallel |
| Contrast ratio | 2000 : 1 (Dark Room Contrast ) |
| Colours | Colorful |
| Driver IC | SSD1351 |
| Backlight | white light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 33.5mmX49.83mm X1.61mm |
| Active area | 26.279mm X26.284mm |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Product description
Customized1.46 Inch Color OLED Display With An 8 Bit Parallel LCD Interface 30 Pins 128×128 LCD Screen
What is OLED Display Modules?
An OLED Display Module is a type of display device that uses organic light - emitting diode (OLED) technology. It consists of an array of OLED pixels that can emit light when an electric current is applied. OLED Display Modules are widely used in various electronic devices due to their excellent characteristics, such as high contrast ratios, wide viewing angles, fast response times, and the ability to display vibrant and accurate colors. They can be found in applications like smartphones, tablets, wearable devices, and automotive displays. Additionally, OLED Display Modules often come with integrated driver circuits to control the operation of the OLED pixels and interface with the host device.
Product Features
As an OLED display, it utilizes self - emissive technology. Each pixel emits its own light, eliminating the need for a backlight and enabling thinner designs, faster response times, and better power efficiency.
It is a full - color display, providing a rich and vibrant color palette to meet the diverse needs of various applications, rather than having limited color options like specific single colors.
Compliant with REACH & it ensures high - quality manufacturing and environmental friendliness.
Product Specifications
Interface: Comes with an 8 - bit parallel LCD interface for seamless connectivity.
Size: Compact in design, measuring 33.5X49.83X1.61mm, with a visual area of 26.279X26.284mm.
Pin Number: Equipped with 30 pins to guarantee reliable electrical connections.
Temperature Range: Capable of operating within - 40°C to +70°C and can be stored between - 40°C to +85°C.
Key Parameters
Resolution: It features a crisp 128×128 Pixels resolution, delivering clear and detailed imagery.
Viewing Angles: With all - around viewing angles of 80/80/80/80, it ensures excellent visibility from every direction.
Contrast Ratio: Boasting an impressive 2000:1 (Dark Room Contrast) ratio, it offers vivid colors and deep blacks for a truly immersive visual experience.

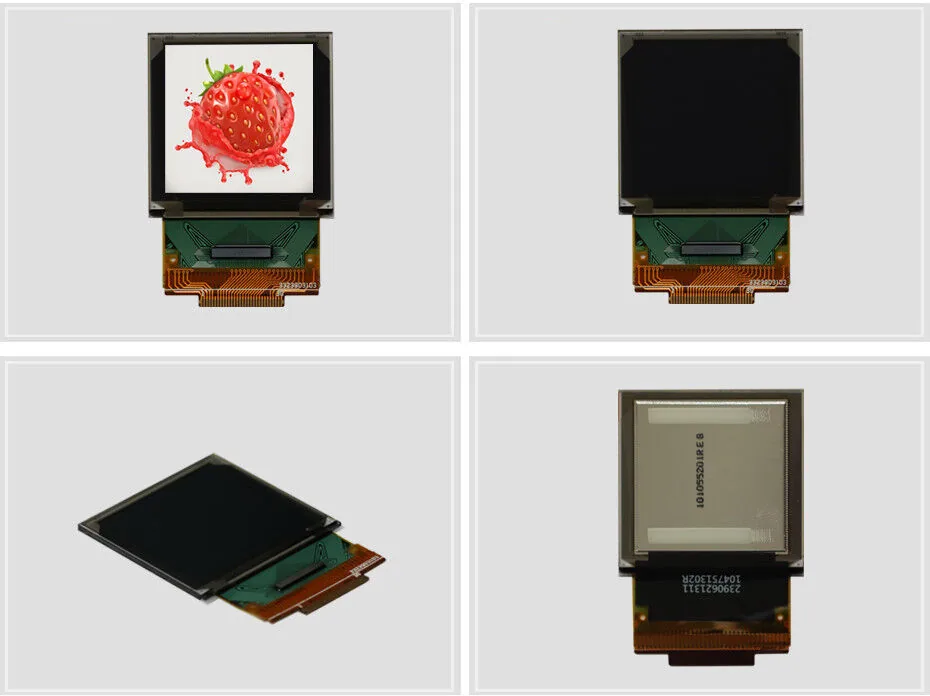

Detail photos
What this specification means in practice
Operating range -40°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Handheld Terminals & POS
Battery-powered handhelds - an OLED lights only the pixels it needs, so a mostly dark screen draws very little.
Instrumentation & Metering
Small readouts needing wide viewing angle and high contrast in a few square centimetres.
Smart Home & Appliances
Smart locks, chargers and small appliances where the display is a status window, not a UI.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
LCD 1.44 TFT 128X128 TFT Display , Custom LCD Display Module With ST7735S Driver
0.49 Inch Monochrome OLED Display Module , OEM Ultra Thin OLED Display
Monochrome Dot Matrix 1.54 Inch OLED Display 128x64 Pixels I2C Interface LCD Display
1.3 Inch OLED LCD Display High Res Versatile Interface OLED Screen Module With SH1116 Driven
Questions about this model
What is the minimum order quantity for the JM-PO128?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
