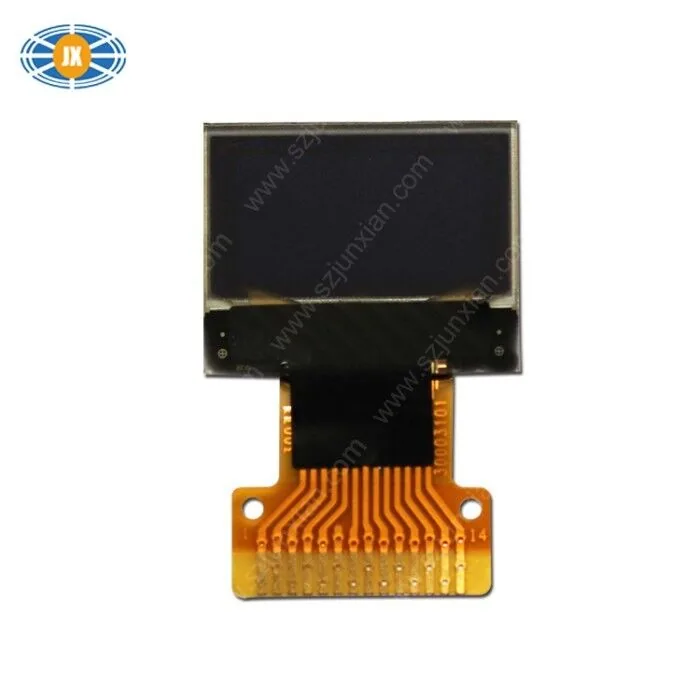

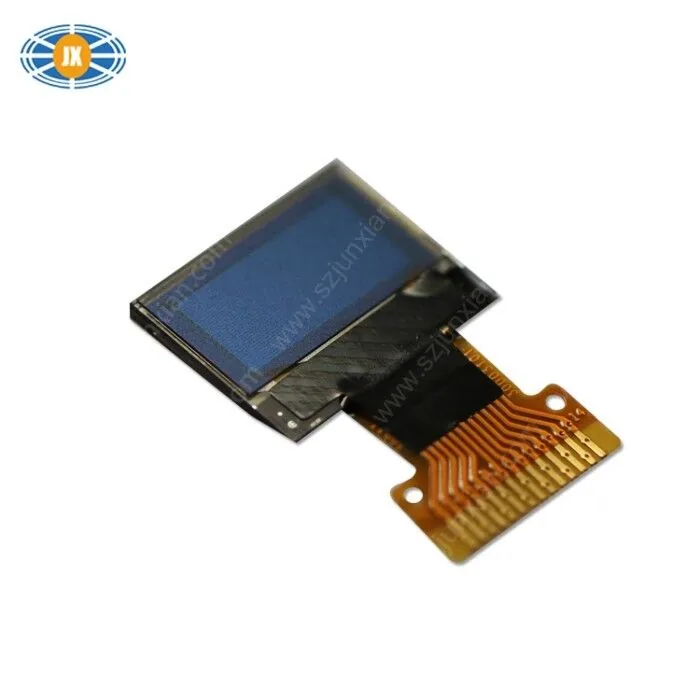

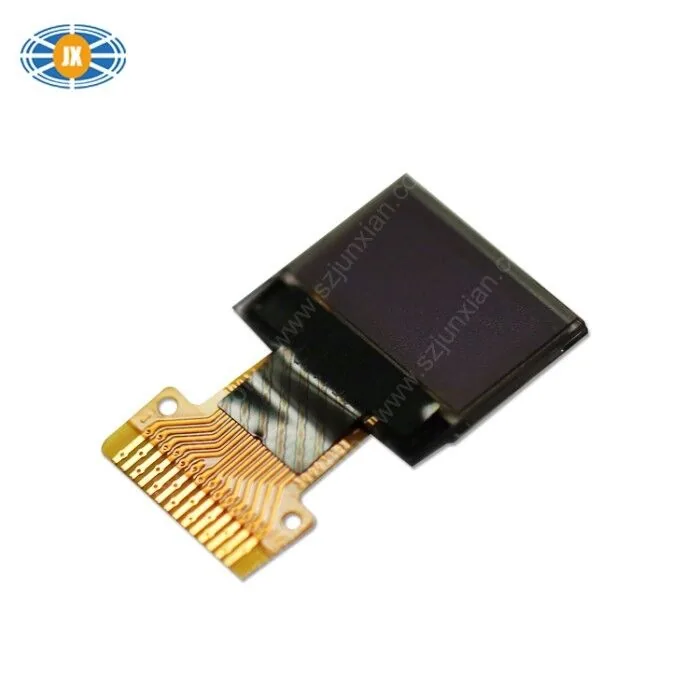

0.49" OLED display module, 64×32, MCU
- Model
- JM-PO107
- Size
- 0.49"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PO107, built in our Shenzhen plant, -40°C to +70°C operating range, SSD1306BZ driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PO107 |
|---|---|
| Screen size | 0.49" |
| Resolution | 64×32 |
| Display type | Positive Display |
| Interface | Parallel/Serial |
| Contrast ratio | 2000 : 1 (Dark Room Contrast ) |
| Colours | OLED (Blue, White, Dual - Color) |
| Driver IC | SSD1306BZ |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 14.5mmX11.6mmX5.58MM |
| Active area | 14.5mmX11.6mmX5.58MM |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Product description
Custom & OEM 0.49 inch Monochrome OLED Display Module with JM-PO107 - Ultra-Thin High Contrast 2000:1 for Wearables & IoT
What is OLED Display Modules?
An OLED Display Module is a type of display device that uses organic light - emitting diode (OLED) technology. It consists of an array of OLED pixels that can emit light when an electric current is applied.
Product Features and Advantages
(1)Compact Ultra-Thin Design:
With dimensions of 14.5×11.6×1.227mm, the module fits seamlessly into space-constrained wearable and portable devices, enabling sleek and lightweight product designs.
(2) Visual Performance:
0.49" monochrome OLED display with 64×32 resolution, 2000:1 contrast ratio, and 160° wide viewing angle delivers sharp images, deep blacks, and consistent visibility from any orientation.
(3) Efficient Power Consumption:
Operates at 1.65–3.3V with typical current of 50–150μA, ideal for battery-powered devices requiring long-lasting operation.
(4) Robust Technical Specifications:
I2C interface via SSD1315 driver for easy MCU integration, -40°C to 70°C operating temperature,quality.
(5) High Aperture Rate:
78% aperture rate enhances light transmission, optimizing brightness (160 cd/m²) for clear visibility in various environments.

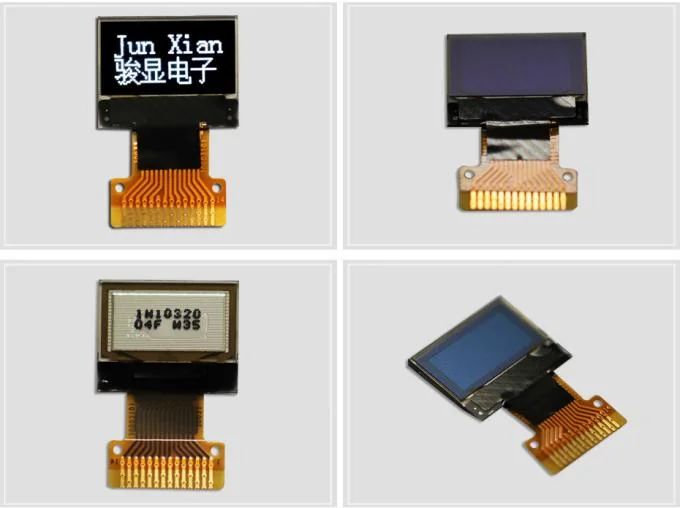

Detail photos
What this specification means in practice
The UART/serial variant carries its own controller and command set, so your MCU sends text and commands instead of driving pixels. It cuts firmware work substantially.
Operating range -40°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Handheld Terminals & POS
Battery-powered handhelds - an OLED lights only the pixels it needs, so a mostly dark screen draws very little.
Instrumentation & Metering
Small readouts needing wide viewing angle and high contrast in a few square centimetres.
Smart Home & Appliances
Smart locks, chargers and small appliances where the display is a status window, not a UI.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
Monochrome Dot Matrix 1.54 Inch OLED Display 128x64 Pixels I2C Interface LCD Display
1.46 Inch Color OLED Display Module with 8 Bit Parallel LCD Interface 30 Pins 128x128 LCD Screen
1.3 Inch OLED LCD Display High Res Versatile Interface OLED Screen Module With SH1116 Driven
2.42 Inch OLED Display Module Monochrome OLED DOT Matrix Display With All Viewing Angle
Questions about this model
What is the minimum order quantity for the JM-PO107?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
