1.5" graphic LCD module, 128×32, SPI
- Model
- JM-PL024
- Size
- 1.5"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PL024, built in our Shenzhen plant - 200 cd/m² brightness, -20°C to +70°C operating range, ST7567R driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PL024 |
|---|---|
| Screen size | 1.5" |
| Resolution | 128×32 |
| Interface | 4-line SPI |
| Brightness | 200 cd/m² |
| Colours | Blue/yellowish Green |
| Driver IC | ST7567R |
| Driving voltage | 3.0V |
| Backlight | LED White, Blue, Yellow, Red, Green And Amber |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 41.50mmX22.50mm X4.9mm |
| Active area | 39.8mmX15.80mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Product description
1.5 Inch 128×32 Monochrome LCD Display With Sunlight Readable Low Power
Definition and Principle
COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.
Product Key Features and Advantages
1. Optimal Resolution for Embedded Use:
The JM-PL024 features a 1.5-inch monochrome LCD panel with a 128×32 resolution, providing sharp visuals that are suited to embedded applications where space is limited but clarity is essential.
(2) Visibility in Natural Light:
With an STN/GRAY/POSITIVE/TRANSFLECTIVE display mode, the panel ensures clear readability even under direct sunlight, eliminating the need for backlighting in bright environments and reducing power consumption.
(3) Low-Power & Versatile Operation:
Operating with 1/33 duty and 1/6 bias at VDD=3.0V and VLCD=6.0V, it’s highly compatible with low-power circuits, making it an energy-efficient choice for battery-powered devices.
(4) Robust Performance in Harsh Conditions:
Capable of stable operation from -20°C to +70°C and safe storage between -30°C to +80°C, this LCD can withstand extreme temperatures, ensuring reliable performance in challenging environments.
(5) Easy System Integration:
Equipped with an ST7565R driver IC and a 4-line SPI interface in a COG/PIN package, it simplifies integration into various systems, reducing development time and costs.
(6) Quality & Environmental Compliance:
Compliant with ROHS standards, the product adheres to strict environmental and quality requirements. Its ±0.30mm tolerance ensures precision manufacturing.

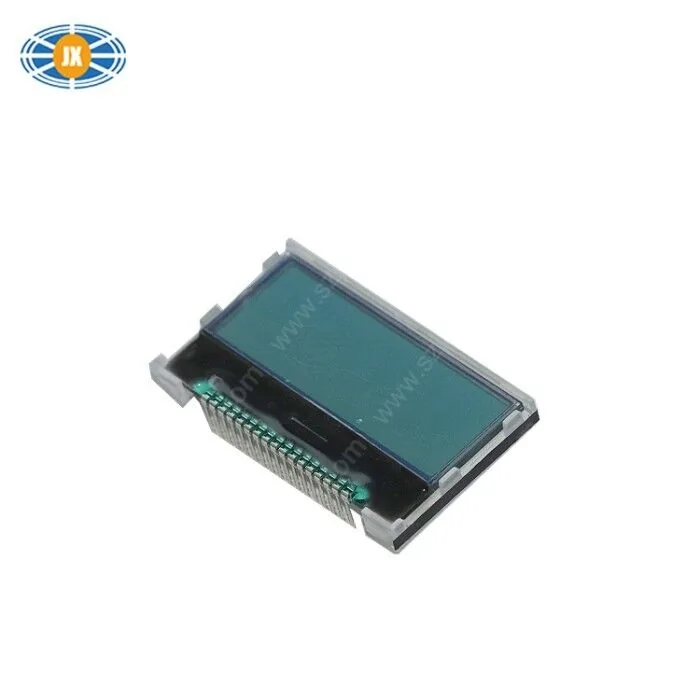

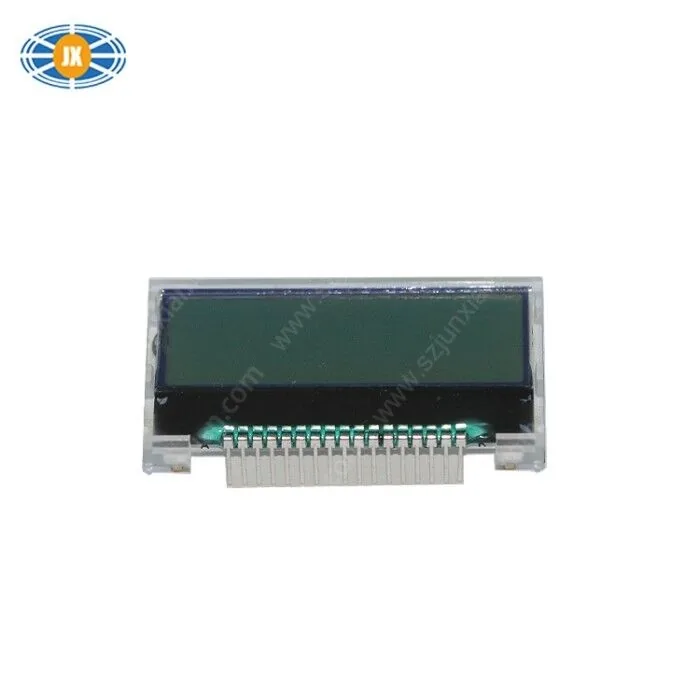

Detail photos
What this specification means in practice
200 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
SPI keeps the wiring to four or five lines, which is why it dominates small colour displays on 32-bit MCUs. The trade-off is refresh rate on larger resolutions.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Instrumentation & Metering
Power, gas and water meters that must run for years on a battery and stay readable in daylight.
Industrial Automation & HMI
Simple machine readouts where colour adds cost but no information.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
OEM ODM Custom LCD Monitor , Multiple TFT LCD Module With Turnkey Solutions
3 Inch Graphic LCD Display 3.3V Sunlight Readable LCD Display 128x64
192×64 STN LCD Display 2 Inch Blue COG LCD Module With Negative Transmissive
192×64 Graphic LCD Display Monochrome Compact Good Visibility COG Dot Matrix Display
Questions about this model
What is the minimum order quantity for the JM-PL024?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
