2.42" OLED display module, 128×64, MCU
- Model
- JM-P0159-00
- Size
- 2.42"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-P0159-00, built in our Shenzhen plant - 120 cd/m² brightness, -40°C to +70°C operating range, SSD1309 Or Equivalent driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-P0159-00 |
|---|---|
| Screen size | 2.42" |
| Resolution | 128×64 |
| Display type | outstanding |
| Interface | 6800/8080 INTERFACE |
| Brightness | 120 cd/m² |
| Contrast ratio | 2000 : 1 (Dark Room Contrast ) |
| Colours | Blue And White Color Option |
| Touch panel | Without Touch Screen (Customizable) |
| Driver IC | SSD1309 Or Equivalent |
| Backlight | Black Background |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 34.5mmx23.0mmx1.42mm |
| Active area | 29.42mmx14.70mm |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description

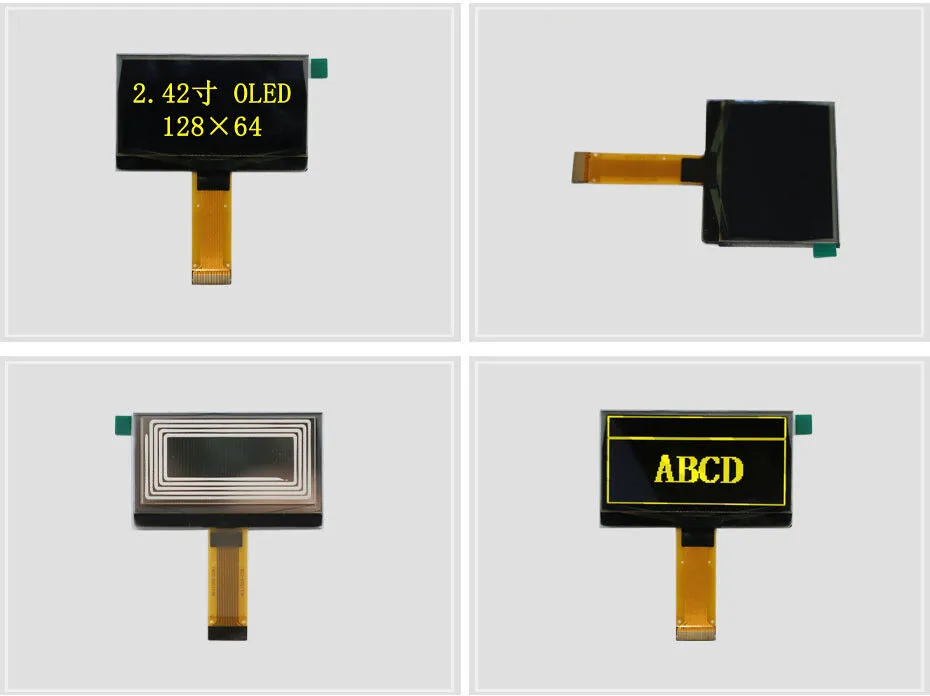

Custom & OEM 2.42 Inch OLED LCD Display Monochrome Dot Matrix OLED Screen With All Viewing Angles fit for AI Smart Handheld
1. Product Features and Advantages
1.1 Ultra-Low Power Consumption
Designed for peak energy efficiency, our 2.42-inch Monochrome Dot Matrix OLED significantly extends battery life, making it the ideal choice for power-sensitive portable devices.
1.2 Extreme Temperature Resilience
Engineered to perform flawlessly across a wide temperature spectrum, it operates reliably from -40°C to +70°C and withstands storage conditions from -40°C to +85°C. Whether in frigid outdoor settings or high-heat environments, its performance remains uncompromised.
1.3 Durability & Stability
Featuring Chip-on-Glass (COG) construction, this display offers enhanced mechanical strength and long-term stability, reducing the risk of damage and ensuring consistent performance even in demanding applications.
1.4 Versatile Connectivity & Customization
With support for multiple interfaces—6800, 8080, SPI, and I2C—it seamlessly integrates into various systems. Choose from optional white, blue, yellow, or green font colors to match your design requirements, all while maintaining a sharp 128×64-pixel resolution powered by the reliable SSD1309 driver IC.
1.5 Proven PMOLED Technology
Combining the benefits of Passive Matrix OLED (PMOLED) with monochrome clarity, this display delivers sharp visuals, high contrast, and quick response times, balancing performance with cost-effectiveness for diverse projects.
1.6 Package Includes
2.42-inch OLED display module with pre-soldered interface pins
PS: This 2.42-inch OLED LCD display module is available in blue and white color options
What this specification means in practice
120 cd/m² is an indoor, low-power specification - typical for battery meters and handheld instruments where runtime matters more than brightness.
The parallel MCU (8080/6800) interface is the classic choice for microcontroller designs - simple timing, no dedicated LCD controller needed on the host.
Operating range -40°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Handheld Terminals & POS
Battery-powered handhelds - an OLED lights only the pixels it needs, so a mostly dark screen draws very little.
Instrumentation & Metering
Small readouts needing wide viewing angle and high contrast in a few square centimetres.
Smart Home & Appliances
Smart locks, chargers and small appliances where the display is a status window, not a UI.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
3 Inch Graphic LCD Display 3.3V Sunlight Readable LCD Display 128x64
128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver
Monochrome Dot Matrix 1.54 Inch OLED Display 128x64 Pixels I2C Interface LCD Display
1.3 Inch OLED LCD Display High Res Versatile Interface OLED Screen Module With SH1116 Driven
Questions about this model
What is the minimum order quantity for the JM-P0159-00?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
