2.8" IPS TFT LCD module, 320×240, RGB
- Model
- JM-T006
- Size
- 2.8"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-T006, built in our Shenzhen plant - 350 cd/m² brightness, -20°C to +70°C operating range, Customizable driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-T006 |
|---|---|
| Screen size | 2.8" |
| Resolution | 320×240 |
| Display type | IPS |
| Interface | RGB 24BIT |
| Brightness | 350 cd/m² |
| Colours | 16.7M |
| Touch panel | selectable |
| Driver IC | Customizable |
| Driving voltage | 5.0V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 120.00x70.00x33.3mm |
| Active area | 57.60X43.20mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Custom 2.8-inch Industrial TFT LCD Display Four-channel Audio Display Panel with Full Viewing Angles from LCD Manufacturer
Product Description
2.8-inch Industrial TFT LCD Display (JM-T006)
Engineered for industrial environments, this 2.8-inch TFT LCD features a 320×240 (QVGA) resolution and IPS panel, delivering crisp visuals with full viewing angles (all directions).
As a four-channel audio display panel, it integrates audio control and LCD display functionalities, making it ideal for audio equipment, industrial systems, and embedded applications.
The module’s 3.2 mm diameter mounting holes (compatible with standard 3 mm screws) are grounded to the GND network for stable installation.
With an operating temperature range of -20°C to 70°C, it ensures reliable performance in harsh conditions. The display utilizes a 2.54 mm connector interface and supports a 5V DC power supply, enabling seamless integration into diverse devices.
Core Specifications
Resolution: 320×240 (QVGA)
Panel Type: IPS
Interface: 2.54 mm connector
Power Supply: 5V DC
Mounting: 3.2 mm holes (3 mm screw compatible)
Services: Customizable display UI and functional adjustments to meet evolving product needs. RoHS-compliant and built for durability, this display is suited for applications in Europe, the US, the Middle East, and beyond.
Turnkey Solutions: We provide end-to-end support, including hardware structure design, software development, and complete LCD modules integrated with PCBA and touch panels—delivering ready-to-use solutions for your application.
This series combines precision engineering with customization flexibility, making it ideal for industrial, consumer electronics, and IoT display applications.

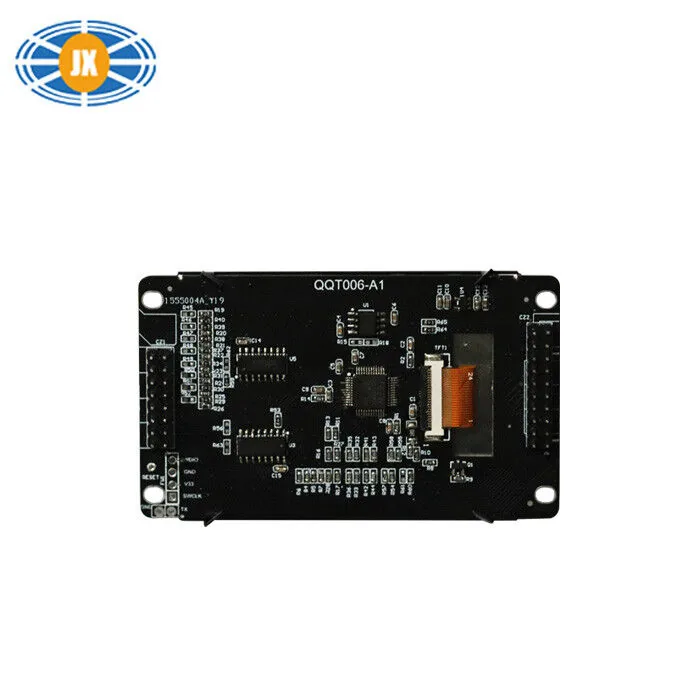

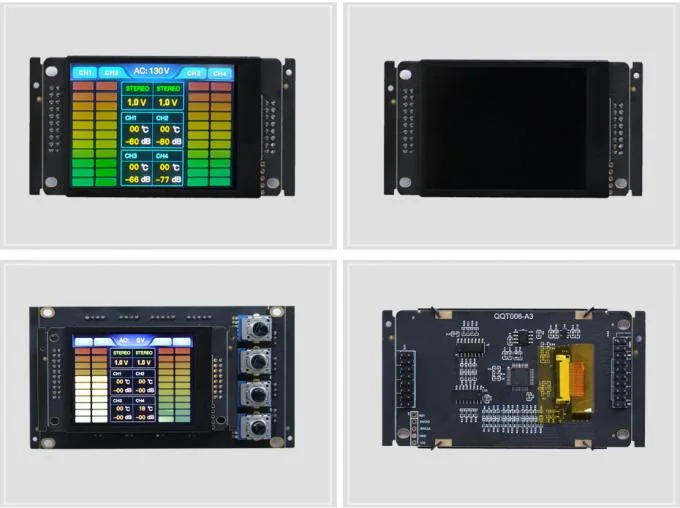

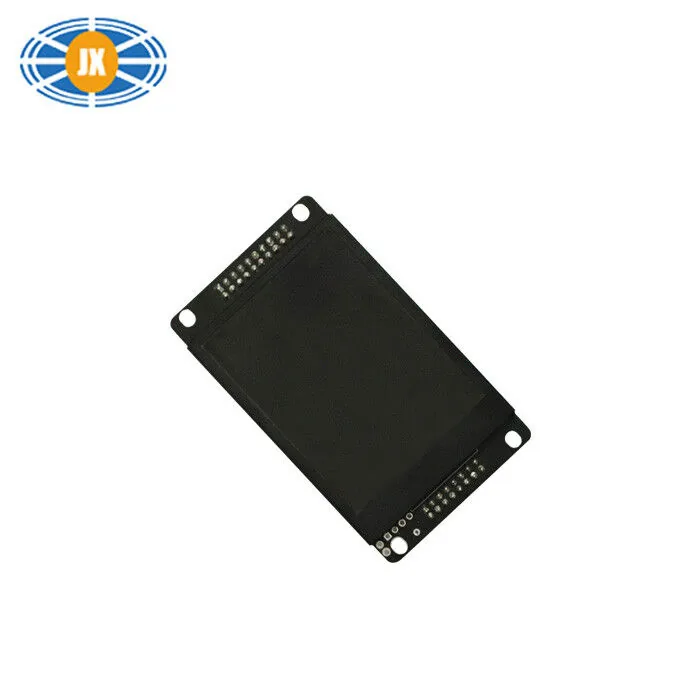

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
350 cd/m² is the bracket most industrial enclosures need: readable under workshop lighting and near a window, without the power draw of a sunlight-readable backlight.
The parallel RGB interface needs a host with an LCD controller and around 20-28 I/O lines. It gives full frame-rate colour without a frame buffer IC, which is why it is standard on industrial ARM boards.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Machine panels and PLC front ends, where the module sits behind a cut-out in a metal enclosure and has to survive years of vibration.
Instrumentation & Metering
Bench and field instruments that show waveforms, curves or multi-line readings that a segment display cannot express.
Smart Home & Appliances
Control panels for appliances and thermostats, usually behind printed cover glass.
Handheld Terminals & POS
Portable terminals where the module size sets the whole enclosure dimension.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
Questions about this model
What is the minimum order quantity for the JM-T006?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
