240×64 Dots Monochrome Graphic LCD Display 200cd/m2 Durable Construction Lcd Screen
- Model
- JM24064A
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM24064A, built in our Shenzhen plant - 200 cd/m² brightness, -20°C to +70°C operating range, RA6963C driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM24064A |
|---|---|
| Resolution | 240×64 |
| Display type | Blue Membrane/yellowish Green STN |
| Brightness | 200 cd/m² |
| Colours | Blue/yellowish Green |
| Touch panel | Customizable |
| Driver IC | RA6963C |
| Driving voltage | 5.0V |
| Backlight | LED White Light/yellowish Green |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 180.0mm×65.0mm×13.0mm |
| Active area | 132.0mm×39.0mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
OEM & Custom 240×64 Dots Monochrome LCD Module With Robust Design Durable Construction LCD Screen

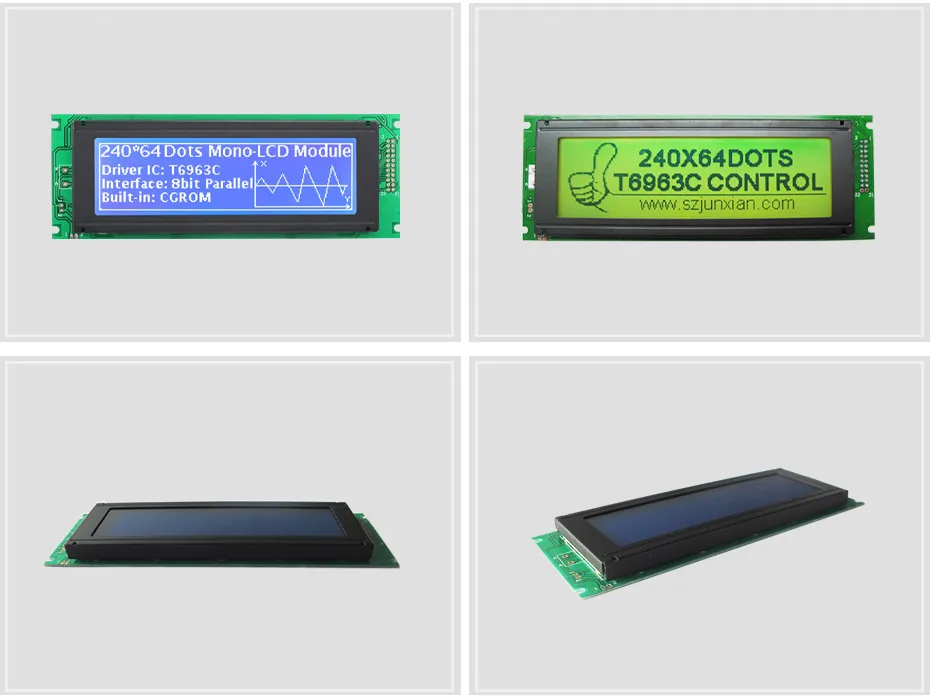

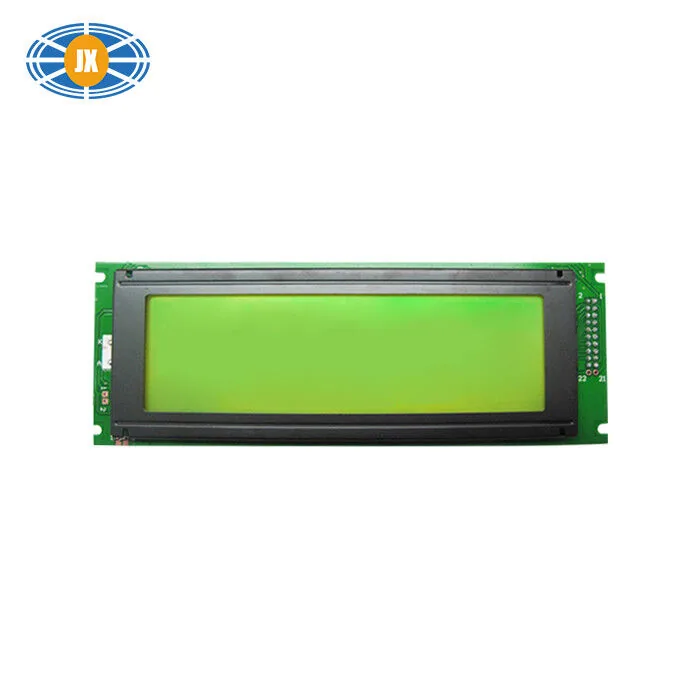

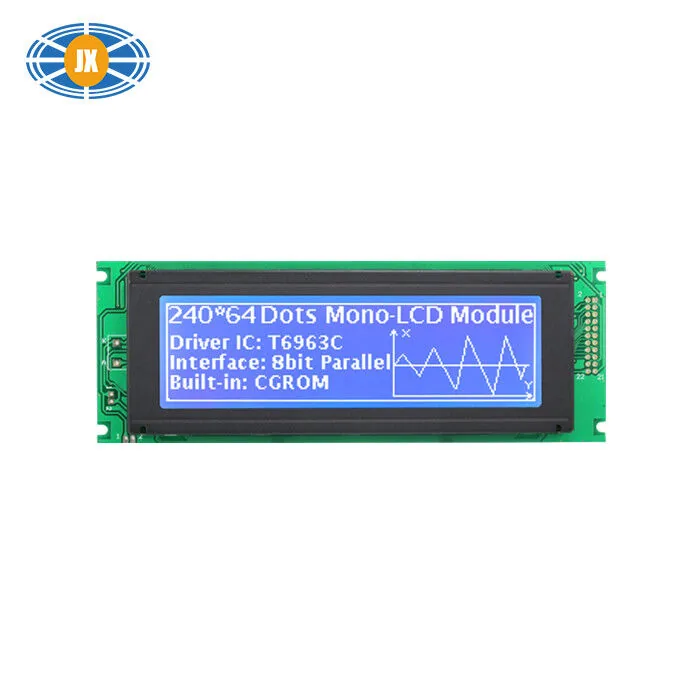

Designed for reliability and versatility, the JM24064A-GSBLWFA5 is a 240×64 dot-matrix LCD module ideal for industrial and embedded applications. Featuring a STN (Super Twisted Nematic) panel with a negative display mode, it offers crisp visuals in three customizable color combinations: yellow-green background with black text, blue background with white text, and gray background with black text, catering to diverse aesthetic and visibility needs.
1. Product Specifications and Features
(1) Key Specifications:
Display Type: 240×64 dots, STN (Blue), Transmissive/Negative
Viewing Direction: 6 o’clock (bottom-up)
Backlight: White side-mounted LED, 5.0V supply, 200mA current
Interface: 8-bit data bus MCU interface, compatible with T6963C driver IC
Dimensions: 180(L)×65(W)×13.5(H) mm, with a viewing area of 132×39 mm
Operating Temperature: -20°C to 70°C; Storage: -30°C to 80°C
Power Supply: Logic (VDD): 4.5–5.5V; LCD Driver (VOP): 12.3–13.3V (temperature-dependent)
(2) Core Features:
High Contrast & Readability: STN technology ensures clear visibility in various lighting conditions, enhanced by adjustable backlight intensity.
Robust Design: Built to withstand industrial environments with wide temperature/humidity tolerance (20–90% RH at <40°C).
Flexible Integration: 8-bit parallel interface enables seamless connectivity with micro controllers, supported by detailed timing diagrams and command sets (e.g., auto-read/write, cursor control).
Durable Construction: Reinforced PCB and anti-static design minimize operational risks, with strict quality standards for defect tolerance (e.g., ≤0.25mm spots).
What this specification means in practice
TN glass is the cost-efficient choice with the fastest response. Contrast and colour shift once you move off the specified viewing direction, so it fits devices with a fixed operator position.
200 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Instrumentation & Metering
Power, gas and water meters that must run for years on a battery and stay readable in daylight.
Industrial Automation & HMI
Simple machine readouts where colour adds cost but no information.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
OEM ODM Custom LCD Monitor , Multiple TFT LCD Module With Turnkey Solutions
3 Inch Graphic LCD Display 3.3V Sunlight Readable LCD Display 128x64
192×64 STN LCD Display 2 Inch Blue COG LCD Module With Negative Transmissive
192×64 Graphic LCD Display Monochrome Compact Good Visibility COG Dot Matrix Display
Questions about this model
What is the minimum order quantity for the JM24064A?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
