7" TFT LCD module, 800×480, RGB
- Model
- JM-PT098-00
- Size
- 7"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT098-00, built in our Shenzhen plant - 450 cd/m² brightness, -20°C to +70°C operating range, EK9713 driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT098-00 |
|---|---|
| Screen size | 7" |
| Resolution | 800×480 |
| Display type | TN |
| Interface | RGB 8bit |
| Brightness | 450 cd/m² |
| Touch panel | Customizable Touch |
| Driver IC | EK9713 |
| Driving voltage | 5.0V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 164.9*100*6.9mm |
| Active area | 154.08X85.92mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Custom Wide Viewing Angle 7-inch Industrial LCD Display 450cd/m² Low Power LCD Monitor
1. Product Features and Advantages
(1) Visual Clarity
7-inch display with 16.7 million color support delivers vibrant, true-to-life imagery and sharp details.
450 cd/m² high brightness ensures excellent readability under direct sunlight, ideal for outdoor use.
500:1 contrast ratio enhances depth with deep blacks and bright whites, improving visual immersion.
(2) Wide Viewing Flexibility
Wide viewing angles (70° left/right/down, 50° up at CR≥10) allow clear visibility from various perspectives, suited to multi-user or shared-screen scenarios.
Fast response time (10ms ON / 15ms OFF) minimizes motion blur in dynamic content like videos or real-time data.
(3) Industrial-Grade Durability
Operates reliably in extreme temperatures (-20°C to 70°C) and stores safely at -30°C to 80°C, suitable for harsh environments.
Passes rigorous humidity, vibration, and static resistance tests, ensuring long-term stability.
50,000-hour backlight lifespan (at 140mA LED current) guarantees extended usage without degradation.
(4) Energy-Efficient & Compact Design
Low power consumption (0.240W typical) makes it ideal for battery-powered devices like portables or vehicles.
Dual voltage supply (DVDD: 3.3V; AVDD: 6.5-13.5V) offers compatibility with diverse systems.
Compact dimensions (164.9×100×6.9mm) enable easy integration into space-constrained applications.
(5) Certified Quality Assurance
Ensuring consistent performance and reliability.

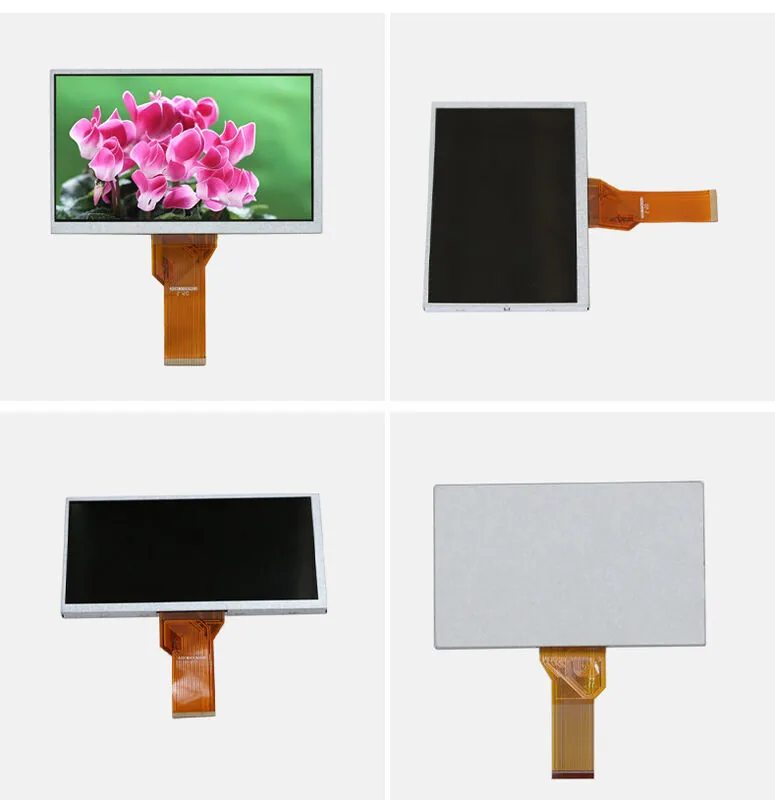

Detail photos
What this specification means in practice
TN glass is the cost-efficient choice with the fastest response. Contrast and colour shift once you move off the specified viewing direction, so it fits devices with a fixed operator position.
450 cd/m² is the bracket most industrial enclosures need: readable under workshop lighting and near a window, without the power draw of a sunlight-readable backlight.
The parallel RGB interface needs a host with an LCD controller and around 20-28 I/O lines. It gives full frame-rate colour without a frame buffer IC, which is why it is standard on industrial ARM boards.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Machine panels and PLC front ends, where the module sits behind a cut-out in a metal enclosure and has to survive years of vibration.
Instrumentation & Metering
Bench and field instruments that show waveforms, curves or multi-line readings that a segment display cannot express.
Smart Home & Appliances
Control panels for appliances and thermostats, usually behind printed cover glass.
Handheld Terminals & POS
Portable terminals where the module size sets the whole enclosure dimension.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
450cd/M2 TFT Capacitive Touch Screen , 7 Inch Capacitive Touch Panel For Industrial Devices
7 Inch TFT LCD Touch Screen Display Module Full Viewing Angles / Adjustable Brightness
300cd/m2 High Brightness LCD Display 7 Inch 1024x600 For Automotive
7 Inch TFT Screen 1024x600 TFT Capacitive Touchscreen For Industrial / Outdoor
Questions about this model
What is the minimum order quantity for the JM-PT098-00?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
