4.45" IPS TFT LCD module, 480×854, MIPI
- Model
- JM-PT097
- Size
- 4.45"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT097, built in our Shenzhen plant - 400 cd/m² brightness, -20°C to +70°C operating range, GC9503CV driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT097 |
|---|---|
| Screen size | 4.45" |
| Resolution | 480×854 |
| Display type | IPS |
| Interface | MIPI |
| Brightness | 400 cd/m² |
| Colours | Normally White |
| Touch panel | Touch-screen And No Touch Screen For Optional |
| Driver IC | GC9503CV |
| Driving voltage | 3.3V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 60.00x109.00x2.15mm |
| Active area | 55.44X98.64mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +70°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Full Viewing Angle 4.45-Inch LCD Module With MIPI Interface 400 Cd/M² For Medical & Industrial Imaging
Key Features & Advantages
(1)Visual Performance
4.45-inch IPS LCD with 480×854 resolution and 16.7M colors ensures crisp, high-contrast visuals in demanding industrial environments.
1200:1 contrast ratio and 400 cd/m² brightness enhance readability in challenging lighting conditions (e.g., direct sunlight, low-light settings).
Full viewing angle (85° in all directions at CR≥10) enables flexible operation from any perspective, ideal for multi-user or dynamic setups.
(2) Robust Industrial-Grade Durability
Passes rigorous testing: ESD protection (±2kV HBM/±8kV air), thermal shock resistance, and vibration tolerance, ensuring longevity in harsh environments.
Constructed with RoHS-compliant materials, meeting environmental and safety standards for global use.
(3) Efficient Connectivity & Color Accuracy
Driven by GC9503CV driver with MIPI interface for fast data transfer and stable performance in embedded systems.
RGB-stripe pixel arrangement and 70% NTSC color gamut (CIE1931 coordinates) deliver precise color reproduction, critical for medical imaging and industrial diagnostics.
(4)Wide Operational Flexibility
Designed for rugged industrial applications, balancing durability with visual clarity for mission-critical tasks.
(5)Long - lasting and Safe
With an LED white - light backlight that has a lifespan of 40000 hours, it ensures long - term reliable use. Moreover, it complies with REACH and RoHS standards, which means it is RoHS-compliant and safe for both users and the environment.Attesting to its high - quality manufacturing process.

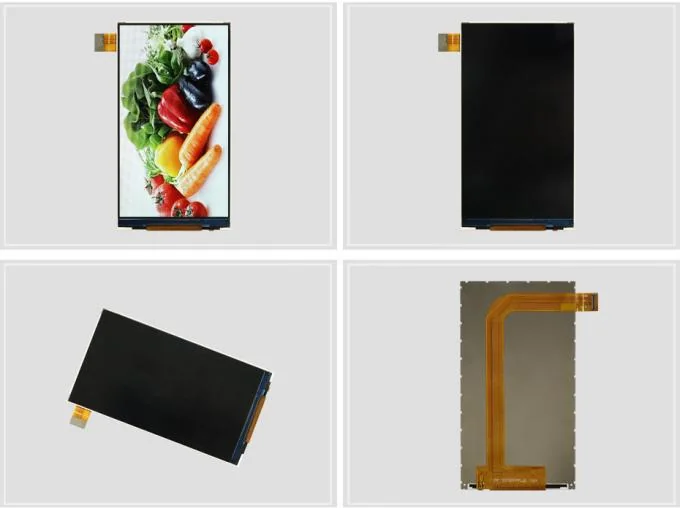

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
400 cd/m² is the bracket most industrial enclosures need: readable under workshop lighting and near a window, without the power draw of a sunlight-readable backlight.
The MIPI DSI interface carries high resolution over few wires, but it needs a host SoC with a DSI controller - most 8-bit MCUs cannot drive it. Check your processor before choosing this variant.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Machine panels and PLC front ends, where the module sits behind a cut-out in a metal enclosure and has to survive years of vibration.
Instrumentation & Metering
Bench and field instruments that show waveforms, curves or multi-line readings that a segment display cannot express.
Smart Home & Appliances
Control panels for appliances and thermostats, usually behind printed cover glass.
Handheld Terminals & POS
Portable terminals where the module size sets the whole enclosure dimension.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
300cd/m2 5 Inch TFT LCD Monitor , IPS LCD Display Module 480x854 Pixels
Custom 2.4 Inch TFT LCD Display 240×320 MCU Interface 350cd/m2 High Brightness TFT Display
1.14 Inch IPS TFT LCD Display Manufacturer 135x240 Pixels 8 Bit MCU Llcd Interface
7 Inch TFT LCD Display 450cd/M2 Industrial Custom TFT Display Viewing Angle
Questions about this model
What is the minimum order quantity for the JM-PT097?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
