Industrial LCD Touch Screen for Streamlined Production Processes
- Model
- JM-ZH601-00
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-ZH601-00, built in our Shenzhen plant - 350 cd/m² brightness. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-ZH601-00 |
|---|---|
| Resolution | 800×480 |
| Display type | IPS |
| Interface | USB/RS232/RS485 |
| Brightness | 350 cd/m² |
| Colours | 16.7M |
| Touch panel | Resistive Touch Screen |
| Driving voltage | 6-25V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 211.0mmx150.0mmx24mm |
| Active area | 153.84X85.63mm |
| Storage temperature | -20°C to +70°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
High-definition resolution, crisp, detailed images
The TFT LCD display utilizes advanced liquid crystal display technology and boasts high-definition resolution, delivering vibrant colors and rich detail. Both text and images are rendered with crisp, clear visuals, ensuring intuitive and accurate information transmission. Its high brightness and high contrast ensure excellent visibility in a variety of lighting conditions, ensuring a clear viewing experience at all times.
Product technical parameters

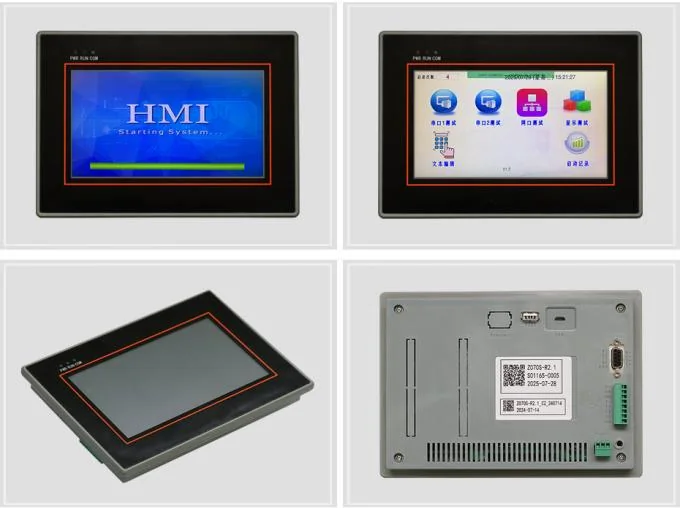

Product in details:
Capacitive/resistive touch support for convenient interaction
This TFT LCD display not only supports traditional display functions but can also be paired with capacitive or resistive touch technology for smooth and precise touch operation. Capacitive touch is responsive and supports multi-touch, making it ideal for smart devices and human-machine interfaces. Resistive touch offers durability and stability, adapting to diverse environments. A variety of touch modes allows the product to meet diverse application needs, enhancing operational convenience and user experience.
Widely used in industrial equipment
With its reliable performance and excellent display quality, TFT LCD displays have been widely used in industrial automation control, medical equipment, instrumentation, automotive electronics, smart homes, and other fields. Its rugged design ensures stable operation under harsh conditions such as high and low temperatures and vibration, meeting the high standards required of displays in industrial applications. Customizable sizes and interfaces facilitate integration into a variety of devices, flexibly adapting to customer needs.
High refresh rate for a high visual experience
A high refresh rate is another major advantage of TFT LCD displays, ensuring smoother and more natural image transitions and effectively reducing artifacts and latency. Whether playing dynamic videos or monitoring real-time data, it delivers a smooth and comfortable viewing experience. For applications requiring rapid response, such as medical image analysis, industrial monitoring systems, and in-vehicle navigation, high refresh rate displays ensure timely and accurate information delivery, providing users with a high visual experience.
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
350 cd/m² is the bracket most industrial enclosures need: readable under workshop lighting and near a window, without the power draw of a sunlight-readable backlight.
A resistive panel works with gloves, styluses and wet fingers, which still makes it the right answer for many industrial and outdoor products.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Operator panels replacing membrane keypads - fewer mechanical parts to fail, and the UI can change in firmware.
Smart Home & Appliances
Wall panels and appliance fronts where the touch sensor is bonded behind decorated cover glass.
Energy Storage, BMS & EV Charging
Charging stations and inverter panels used outdoors with gloves on.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
7 Inch TFT LCD Display 450cd/M2 Industrial Custom TFT Display Viewing Angle
4.3 Inch LCD Touch Screen 800×480 WVGA LCD Display 260cd/M2 With 24 Bit RGB Interface
5 Inch IPS Display Full View TFT LCD Module 500cd/M2 Sunlight Readable Brightness
4.3 Inch BMS Serial Port Capacitive LCD Touch Screen 5V Full View Clear LCD Display
Questions about this model
What is the minimum order quantity for the JM-ZH601-00?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
