RoHS Compliant Custom LCD Display Manufacturer Multiple OEM TFT Display
- Model
- Multiple Size TFT display Customization
- Size
- Custom - made to your drawing
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model Multiple Size TFT display Customization, built in our Shenzhen plant - 100~1000 Nit brightness, Customizable driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | Multiple Size TFT display Customization |
|---|---|
| Resolution | Presets |
| Display type | IPS/TN |
| Interface | MIPI/RGB/SPI/HDMI/MCU |
| Brightness | 100~1000 Nit |
| Touch panel | Customizable CTP (Capacitive Touch Panel) |
| Driver IC | Customizable |
| Driving voltage | 1.8V~3.3V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | Custom 0.96~15.6 Inch |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Product description
Product Description
TFT LCD Touchscreen Assembly Product Introduction
Our TFT LCD product line stands out with a comprehensive size range from 0.96 inches to 15.6 inches, meticulously crafted to meet diverse global market demands. These vibrant color - integrated LCD assemblies are the ideal choice for a wide spectrum of applications.
Cutting - Edge Features
Boasting multiple resolution options, our LCDs adapt seamlessly to various performance requirements. A rich array of industry - standard interfaces, such as MIPI, RGB, and HDMI, ensures effortless integration with different host systems. The backlight is fully customizable, with high - brightness settings of up to 1000 nits, guaranteeing excellent visibility even under direct sunlight.
One of our key highlights is the customizable CTP (Capacitive Touch Panel) integration. Leveraging advanced projected capacitive touch technology, these touchscreens offer pinpoint accuracy and smooth multi - touch functionality. With our full - lamination technology, the LCD panels, touchscreens, and cover glasses are bonded together using Optical Clear Adhesive (OCA). This not only results in a sleek, flat surface but also significantly enhances display clarity, reduces glare, and improves overall durability, providing an strong visual and tactile experience.
Tailored Services for You
We offer customized FPC interfaces and aesthetic designs to match your specific mechanical and branding needs. Our turnkey solutions cover every aspect, from hardware and software development to full module integration, combining PCBA, LCD panels, and touchscreens into ready - to - use products.

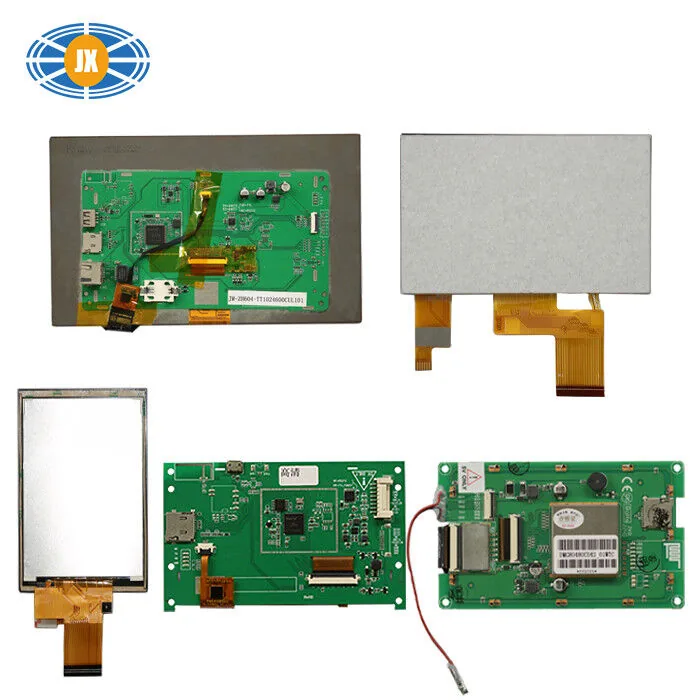

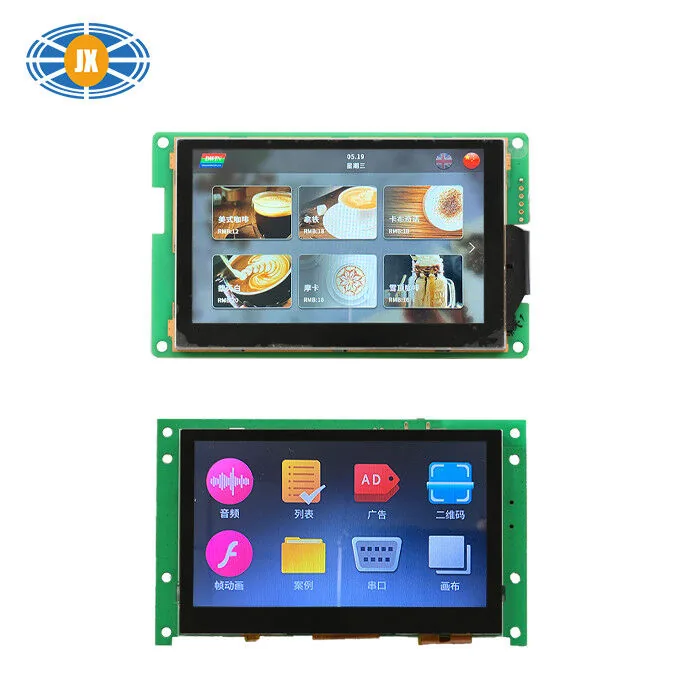

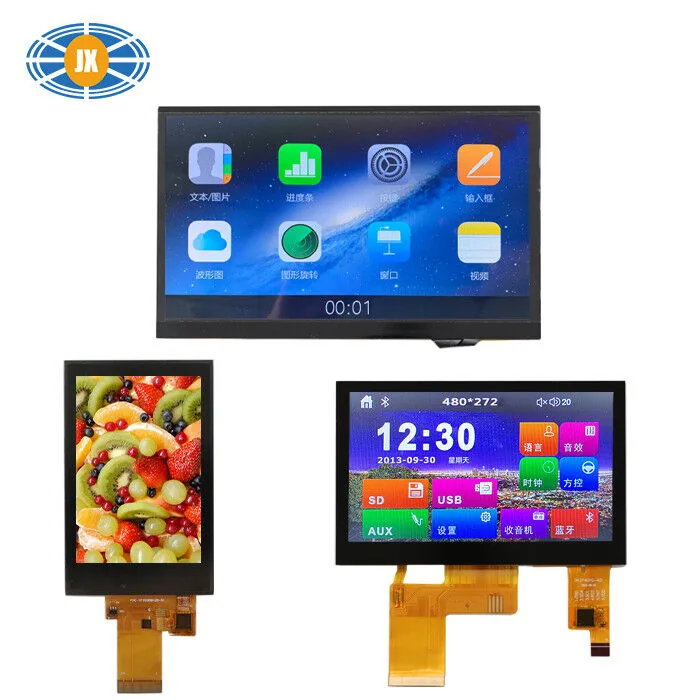

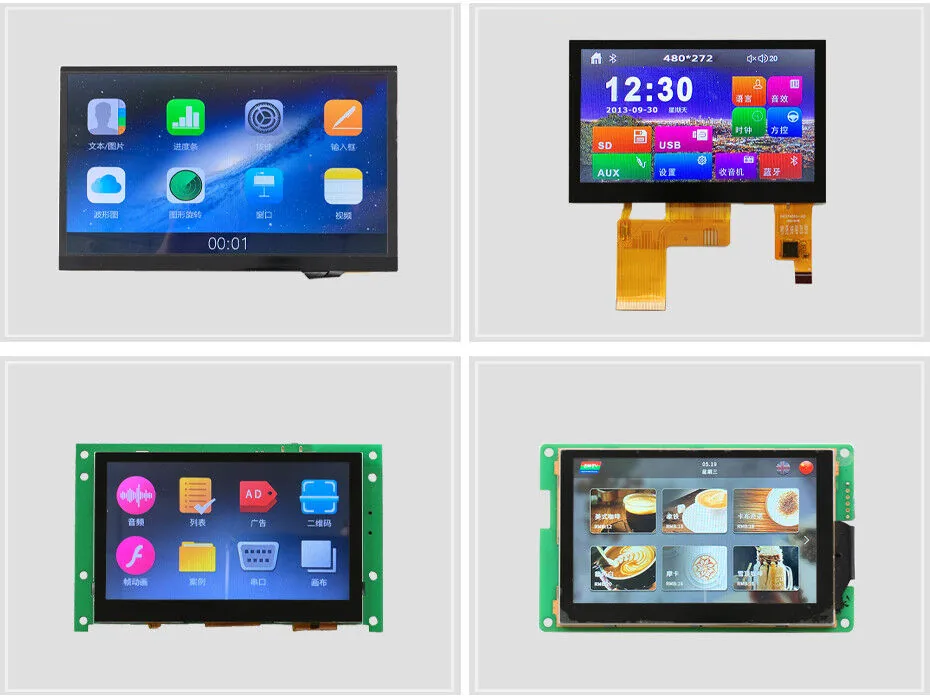

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
100 cd/m² is an indoor, low-power specification - typical for battery meters and handheld instruments where runtime matters more than brightness.
The MIPI DSI interface carries high resolution over few wires, but it needs a host SoC with a DSI controller - most 8-bit MCUs cannot drive it. Check your processor before choosing this variant.
The capacitive touch panel is bonded in-house. Tell us whether the device is used with gloves or in wet conditions - it changes the sensor stack and the controller tuning, and it is far cheaper to decide before tooling than after.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Machine panels and PLC front ends, where the module sits behind a cut-out in a metal enclosure and has to survive years of vibration.
Instrumentation & Metering
Bench and field instruments that show waveforms, curves or multi-line readings that a segment display cannot express.
Smart Home & Appliances
Control panels for appliances and thermostats, usually behind printed cover glass.
Handheld Terminals & POS
Portable terminals where the module size sets the whole enclosure dimension.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
0.96 Inch - 15.6 Inch Custom LCD Display Multiple TFT Display Screen
Custom 2.4 Inch TFT LCD Display 240×320 MCU Interface 350cd/m2 High Brightness TFT Display
1.14 Inch IPS TFT LCD Display Manufacturer 135x240 Pixels 8 Bit MCU Llcd Interface
7 Inch TFT LCD Display 450cd/M2 Industrial Custom TFT Display Viewing Angle
Questions about this model
What is the minimum order quantity for the Multiple Size TFT display Customization?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
