Wide Viewing Angle Smart LCD Module With RGB LCD Interface 300cd/M2 Touch Screen Lcd Screen
- Model
- JM-GD815
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-GD815, built in our Shenzhen plant - 300 cd/m² brightness, -10°C to +70°C operating range, LT8619B driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-GD815 |
|---|---|
| Resolution | 1024×600 |
| Display type | IPS |
| Interface | RGB |
| Brightness | 300 cd/m² |
| Colours | 16.7M |
| Touch panel | Capacitive Touch |
| Driver IC | LT8619B |
| Driving voltage | 5.0V |
| Backlight | 12 LED LIGHTs |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 164.9mm*117.20mm*6.6mm |
| Active area | 154.21mm*85.92mm |
| Operating temperature | -10°C to +70°C |
| Storage temperature | -10°C to +70°C |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Custom & OEM Wide Viewing Angle Smart LCD Modules With RGB LCD Interface 300cd/m2 Touch Screen LCD Screen
Product Key Features and Advantages
(1) Stunning Visuals with Any a full viewing angle:
Featuring a 1024×600 resolution IPS panel, this industrial-grade TFT color LCD delivers vivid 16.7 million colors with a full viewing angle. Its RGB communication ensures sharp, lifelike visuals, making it suited to applications where clarity matters most.
(2) Seamless Integration:
Specifically designed for STM32F429-series core boards, the motherboard comes pre-integrated with essential power supplies, including VGH, VGL, VCOM, AVDD, and an LED backlight driver. With a 40-pin RGB communication interface, it only needs a DC 5V power supply and customer data input, saving you time and resources by eliminating the need to build backlight or TFT driver circuits from scratch. Plus, customize the display effortlessly with code for a tailored solution.
(3) Responsive Touch Experience:
Enjoy zero-latency operation with multi-point capacitive touch support. Whether it's for interactive medical devices or user-friendly automotive controls, the touch functionality is smooth and reliable.
(4) Reliability You Can Trust:
Backed by a generous 2 years free warranty and boasting an impressive 50,000-hour effective service life, this panel ensures long-term performance and durability. It's built to withstand the rigors of various environments, reducing maintenance costs and downtime.
(5) Versatile Applications:
From medical equipment like automatic nucleic acid extractors to automotive central control panels, digital signage, and charging piles, this LCD panel is a versatile solution for a wide range of industries. Its high performance and adaptability make it the ideal choice for your next project.
Choose our industrial-grade TFT color LCD for high visuals, easy integration, reliable performance, and endless possibilities.

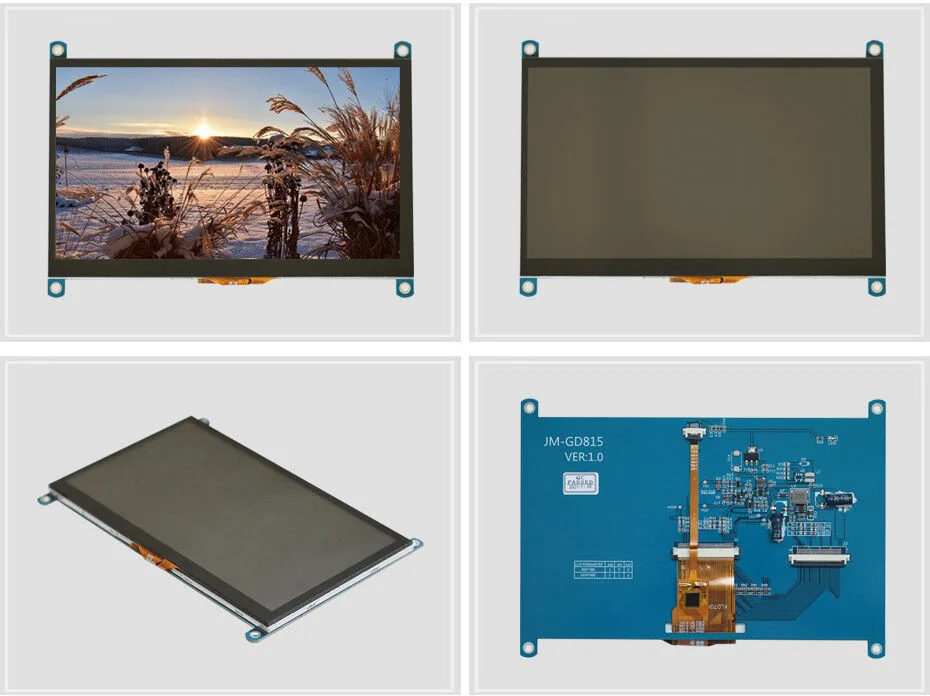

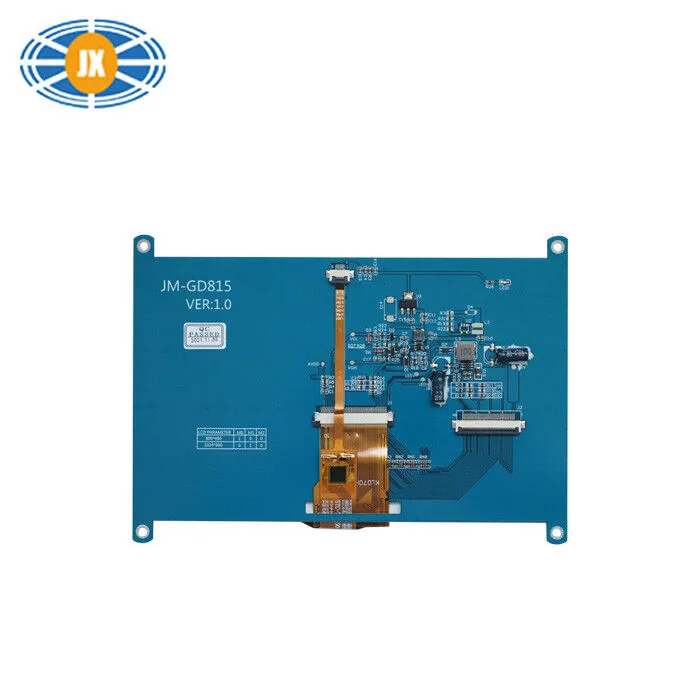

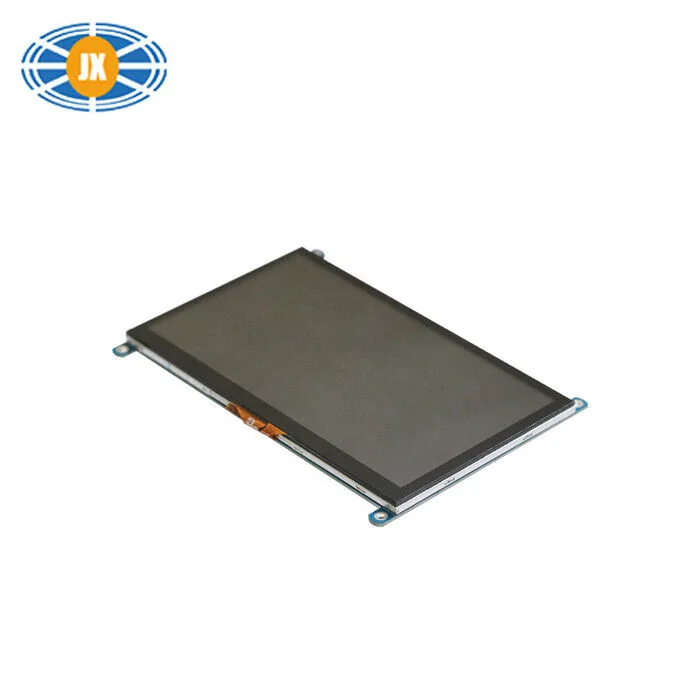

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
300 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
The parallel RGB interface needs a host with an LCD controller and around 20-28 I/O lines. It gives full frame-rate colour without a frame buffer IC, which is why it is standard on industrial ARM boards.
Operating range -10°C to +70°C is a commercial specification. For unheated outdoor use ask for the wide-temperature version of this size.
The capacitive touch panel is bonded in-house. Tell us whether the device is used with gloves or in wet conditions - it changes the sensor stack and the controller tuning, and it is far cheaper to decide before tooling than after.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Energy Storage, BMS & EV Charging
Battery monitors and inverter displays - our BMS variants already speak a battery protocol, which removes most of the display firmware work.
Industrial Automation & HMI
Retrofits where the host controller has a spare UART but no LCD controller.
Instrumentation & Metering
Instruments where the display should be developed independently of the main firmware.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
9 Inch TFT Display 1024x600 Touch Screen LCD Monitor For Industrial / Automotive
450cd/M2 TFT Capacitive Touch Screen , 7 Inch Capacitive Touch Panel For Industrial Devices
7 Inch TFT LCD Touch Screen Display Module Full Viewing Angles / Adjustable Brightness
300cd/m2 High Brightness LCD Display 7 Inch 1024x600 For Automotive
Questions about this model
What is the minimum order quantity for the JM-GD815?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
