7" IPS TFT touch display module, 1024×600, HDMI
- Model
- JM-GD814
- Size
- 7"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-GD814, built in our Shenzhen plant - 300 cd/m² brightness, -10°C to +70°C operating range, LT8619B driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-GD814 |
|---|---|
| Screen size | 7" |
| Resolution | 1024×600 |
| Display type | IPS |
| Interface | HDMI |
| Brightness | 300 cd/m² |
| Contrast ratio | 1-100% |
| Colours | 16.7M |
| Touch panel | Capacitive Touch |
| Driver IC | LT8619B |
| Driving voltage | 5.0V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 180mmx106mmx5.1mm |
| Active area | 346.85mmX212.90mm |
| Operating temperature | -10°C to +70°C |
| Storage temperature | -20°C to +70°C |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
5V 300cd/M2 HDMI TFT LCD Display Capacitive Touch 7-Inch Color LCD Monitor With 1024×600 Pixels
Definition
HDMI TFT LCD Display is a type of liquid crystal display that uses a thin - film - transistor (TFT) array to control the liquid crystal molecules and is equipped with a High - Definition Multimedia Interface (HDMI) for high - definition video signal input. It can present high - quality images and videos with high resolution, rich colors, and fast response times.
Product Key Features and Advantages
2.1 Broad Compatibility
Hardware Compatibility: Supports hardware with HDMI EDID automatic identification, including popular devices like Tree Mepai and NVIDIA - equipped systems, as well as laptops and desktops. This ensures seamless integration with a wide range of set - ups.
OS Compatibility: Works smoothly with major operating systems such as Windows 7/8/10, Linux, and Android, making it suitable for diverse user needs across different platforms.
2.2 Touch - Enabled Convenience
Capacitive Touch: Offers capacitive touch support via a USB interface, providing an intuitive and responsive user - interaction experience.
Configuration Flexibility: Comes with versatile configurations, allowing for both TN and IPS panels, with options for having capacitive touch or not. This caters to various application requirements and budget considerations.
2.3 Ease of Use
Plug - and - Play: Features plug - and - play functionality, especially for IPS panels (available in both touch and non - touch variants). For Windows 7/8/10 systems, simply connect USB power first and then HDMI, with hot - swapping supported. This simplicity reduces installation time and technical hurdles.
2.4 Power - Efficient Design
Low Power Consumption: Operates on low power and is USB - powered. This not only reduces energy costs but also makes it suitable for applications where power supply might be a concern, such as portable or battery - operated devices.

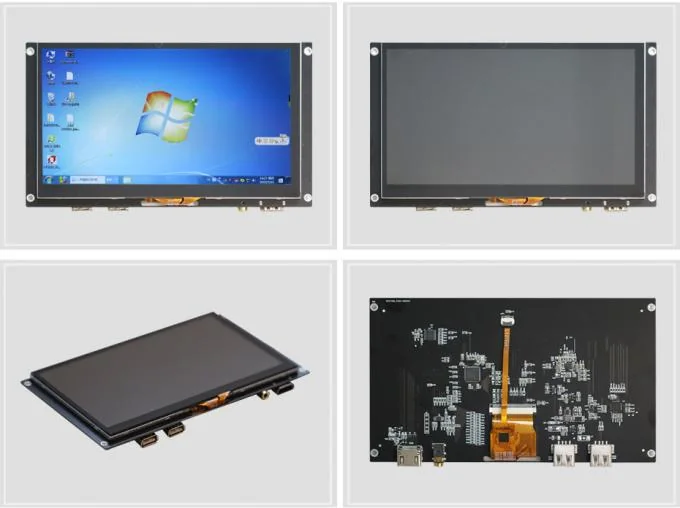

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
300 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
Operating range -10°C to +70°C is a commercial specification. For unheated outdoor use ask for the wide-temperature version of this size.
The capacitive touch panel is bonded in-house. Tell us whether the device is used with gloves or in wet conditions - it changes the sensor stack and the controller tuning, and it is far cheaper to decide before tooling than after.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Operator panels replacing membrane keypads - fewer mechanical parts to fail, and the UI can change in firmware.
Smart Home & Appliances
Wall panels and appliance fronts where the touch sensor is bonded behind decorated cover glass.
Energy Storage, BMS & EV Charging
Charging stations and inverter panels used outdoors with gloves on.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
7 Inch TFT LCD Display 450cd/M2 Industrial Custom TFT Display Viewing Angle
450cd/M2 TFT Capacitive Touch Screen , 7 Inch Capacitive Touch Panel For Industrial Devices
7 Inch TFT LCD Touch Screen Display Module Full Viewing Angles / Adjustable Brightness
300cd/m2 High Brightness LCD Display 7 Inch 1024x600 For Automotive
Questions about this model
What is the minimum order quantity for the JM-GD814?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
